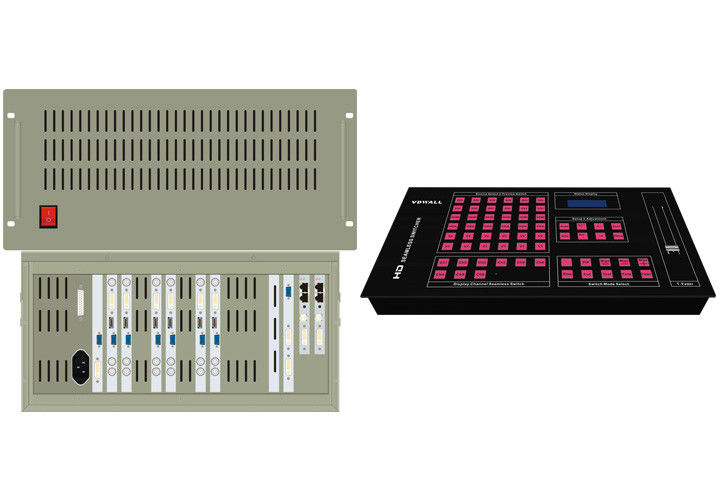

VDWALL LVS5066 HD Switcher Station,HD LED Video Controller
Product Details:
| Place of Origin: | china |
| Brand Name: | muenled |
| Certification: | CCC,FCC,ISO,9001,ROHS,CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3PCS |
|---|---|
| Price: | US$ 8468 |
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 10PCS |
|
Detail Information |
Product Description
- Model: LCC-VDWall-LVS5066
- Shipping Weight: 15kg
- 10 Units in Stock
- Manufactured by: Vdwall
VDWALL LVS5066 HD Switcher Station,HD LED Video Controller)
<DHL FREE SHIPPING>
NO SDI, If need SDI, add: $ 140 Per Road, can add 6 road for most.
1. A latest generation broardcast-grade video processing technology, clearer in video image details,
more distinct in image gray levels, more brilliant in colors and more vivid in scenes
2. 6 input channels with total 24 Multi-format video signals,including 12 Full HD digital inputs:
6× SDI / HD-SDI , 6×DVI / HDMI( with HDCP )
3. Numerous Seamless Switching Effects including Fade-in / Fade-out( MIX ), Clean CUT, WIPE and T-Fader.
They are all truly seamless, glitch-free switching
4. Unrestricted HD Picture-in-Picture ( PIP )
5. HD Text, Flash, Graphics & Logo Overlay
6. 6 Preview Pictures in one DVI output
7. Robust 24 / 7 operation
8. Setup & Control is very Simple
|
Model / Configs |
LVS5066 |
|
|
Input |
||
|
Nums / Type |
6×composite video 6×VGA(RGBHV) 6×DVI / HDMI 6×SDI(HDSDI) |
|
|
Video system |
PAL / NTSC |
|
|
Composite Video Scope / Impedance |
1V(p_p)/ 75Ω |
|
|
VGA Format |
PC(VESA) |
≤1600x1200 @60HZ |
|
VGA Scope / Impedance |
R,G,B = 0.7 V(p_p)/ 75Ω |
|
|
DVI Format |
SD / HD(EIA-861B) |
≤1920x1080P @60HZ |
|
PC(VESA) |
≤1600x1200 @60HZ |
|
|
HDMI Format (HDCP) |
SD / HD(EIA-861B) |
≤1920x1080P @60HZ |
|
PC(VESA) |
≤1600x1200 @60HZ |
|
|
SDI Format |
SDI-SMPTE 259M-C |
576i @50HZ 480i @60HZ |
|
HD-SDI |
HDSDI-SMPTE 292M SMPTE 274M/296M |
1080P @50HZ/60HZ 720P @60HZ |
|
Input Connectors |
Composite video:BNC VGA:15pin D_Sub( Female ) DVI:24+1 DVI_D SDI / HD-SDI :BNC / 75Ω |
|
|
Outputs |
||
|
Main Outputs |
1×VGA(RGBHV) 2×DVI |
|
|
Monitor Outputs |
1×VGA(RGBHV) 1×DVI |
|
|
VGA / DVI Format |
1024×768@60Hz |
|
|
VGA Scope / Impedance |
R,G,B = 0.7 V(p_p)/ 75Ω |
|
|
Main Outputs Connectors |
VGA:15pin D_Sub( Female ) DVI OUT1:24+5 DVI_I DVI OUT2:24+1 DVI_D |
|
|
Monitor Outputs Connectors |
VGA:15pin D_Sub( Female ) DVI: 24+5 DVI_I |
|
|
Others |
||
|
Contro |
Panel Button |
|
|
Power |
100-240VAC 300W 50 / 60Hz |
|
|
Operating Temp |
5-40 ℃ |
|
|
Humidity |
15-85% |
|
|
Size |
178mm(4U)(H)×344mm(W)×490mm(L) |
|
|
Weight |
12KG(N.W.) |
|
Application:
Large venue display apllications such as: TV Broadcast center, Stage Entertainment & Theater , Sports Venues, High-end meetings& Exhibitions etc.
