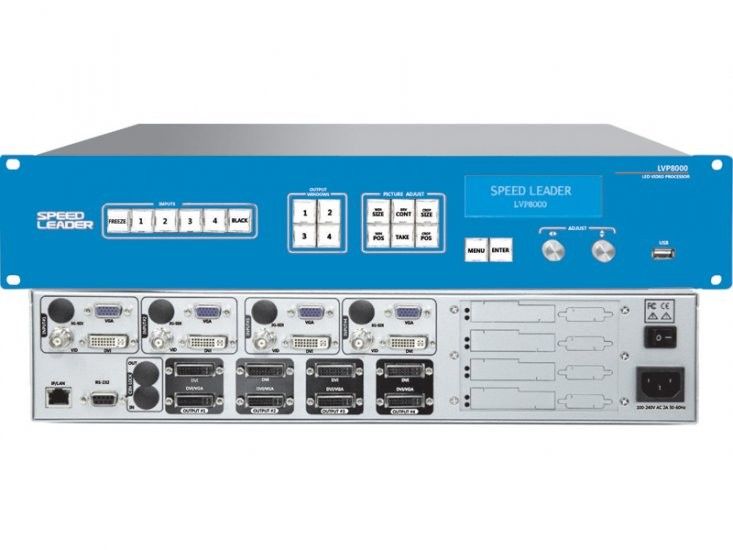

Speadleader led video processor LVP-8000 DHL free shipping
Product Details:
| Place of Origin: | china |
| Brand Name: | muenled |
| Certification: | CCC,FCC,ISO,9001,ROHS,CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3PCS |
|---|---|
| Price: | US$ 2950 |
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 100PCS |
|
Detail Information |
Product Description
- Model: LCC-SpeedLeader-LVP-8000
- Shipping Weight: 9.5kg
- 121 Units in Stock
Speadleader led video processor LVP-8000 DHL free shipping
10240x960, 4608x2304 or 1920x4800 output resolution, 4 separate led video processors, support 4 sending cards built-in, can extend 3G-SDI*4)
LVP - 8000 is a powerful 4 channel video wall processor,which can support 4 independent video processors,4x4 channel hybrid matrix and 4096x2304 high-resolution picture output.For a single processor,it can splice a maximum of 1024x960 or 4096x2304 or 1920x4800 picture output,which is much higher than 8K video output.It is the ideal video demonstration equipment,which can be applied to large-scale performance,command,control center,video conference,medical facility,meeting room and court.
| INPUT | ||||
| Interface | Quantity | Connector | Spec | |
| DVI | 4 | DVI-I |
DVI1.0 , HDMI1.3
VESA Standard , PC to 1920x1200, HD to 1080p
|
|
| VGA | 4 | DB15 |
R,G,B,Hsync,Vsync:0 to1Vpp±3dB (0.7V Video+0.3v Sync ) 75 ohm black level:300mV Sync-tip:0V
VESA Standard , PC to 1920x1200
|
|
| VIDEO | 4 | BNC | PAL/NTSC/SECAM 1Vpp±3DB (0.7V Video+0.3v Sync ) 75 ohm 480i, 576i | |
|
3G-SDI
(Optional)
|
4 | BNC |
SD-SDI , HD-SDI, 3G-SDI
1080p 60/50/30/25/24 /25(PsF)/24(PsF) 720p 60/50/25/24
1080i 1035i 625/525 line
|
|
| OUTPUT | ||||
| Quantity | 8 | |||
| Connecor | DVI-I | |||
|
Standard
|
VGAStandard: R,G,B,Hsync,Vsync:0 to1Vpp±3dB (0.7V Video+0.3v Sync ) 75 ohm
Black level:300mV Sync-tip:0V
DVI Standard : DVI1.0
|
|||
|
Resolution
|
800x600@60Hz 1366x768@60Hz 1920x1080@50Hz 2304x1152@60Hz
1024x768@60Hz 1440x900@60Hz 1920x1080@60Hz 2560x960@60Hz
1280x720@50Hz 1600x1200@60Hz 1920x1200@60Hz
1280x1024@60Hz 1600x1200RB@60Hz 2048x1152@60Hz
|
|||
| GENERAL | ||||
| Weight | 6.5kg | |||
| Dimensions | 8.8cm(H)x44cm(W)x30cm(D) | |||
| Power supply | 100VAC – 240VAC 50/60Hz | |||
| Power consumption | 50W | |||
| Working temperature | 0°C～45°C | |||
| Storage humidity | 10%～90% | |||
| MODLE | PRODUCT DESCRIPTION | |||
| LVP8000 | 2video inptu | |||
| LVP8000-21 | 2video inptu,SDIx1 module | |||
| LVP8000-22 | 2video inptu,SDIx2 module | |||
| LVP8000-40 | 4video inptu | |||
| LVP8000-41 | 4video inptu,SDIx1 module | |||
| LVP8000-42 | 4video inptu,SDIx2 module | |||
| LVP8000-43 | 4video inptu,SDIx3 module | |||
| LVP8000S-44 | 4video inptu,SDIx4 module | |||
