Speadleader Seamless Switcher DVX402 DHL free shipping
Product Details:
| Place of Origin: | china |
| Brand Name: | muenled |
| Certification: | CCC,FCC,ISO,9001,ROHS,CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3PCS |
|---|---|
| Price: | US$ 3584 |
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 100PCS |
|
Detail Information |
Product Description
- Model: LCC-SpeedLeader-DVX402
- Shipping Weight: 6.5kg
- 122 Units in Stock

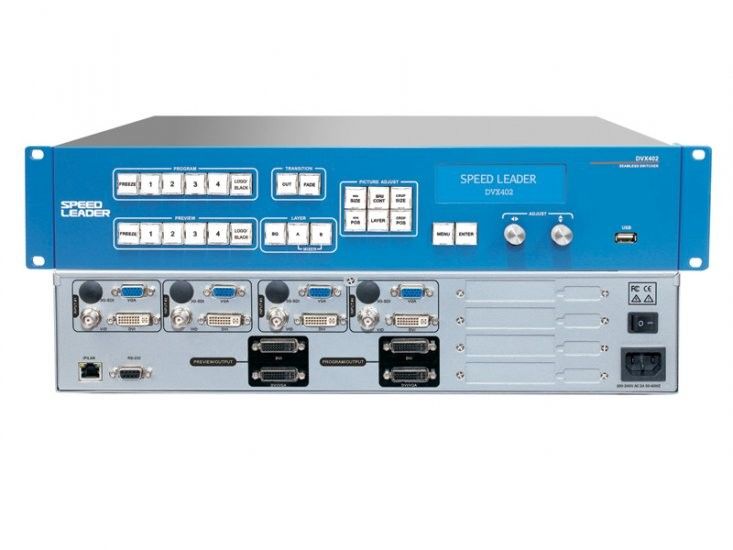

Speadleader Seamless Switcher DVX402 DHL free shipping
(program and preview outputs, 3 live layers, selectable out put resolutions,logo capture and insert, can extend 3G-SDI*4)
DVX402 is such a kind of seamless switch which has 16 inputs,4 channel independent image processing engine and 4 live layers. DVX402 can perfectly achieve seamless switching and high-definition image analysis conversion.It has the function of preview edition,program output,switching transition,LOGO interception and insertion and screen freezing,which can also meet all the requirements for high-end presentation.
| INPUT | ||||
| Interface | Quantity | Connector | Spec | |
| DVI | 4 | DVI-I |
DVI1.0 , HDMI1.3
VESA Standard , PC to 1920x1200, HD to 1080p
|
|
| VGA | 4 | DB15 |
R,G,B,Hsync,Vsync:0 to1Vpp±3dB (0.7V Video+0.3v Sync ) 75 ohm black level:300mV Sync-tip:0V
VESA Standard , PC to 1920x1200
|
|
| VIDEO | 4 | BNC | PAL/NTSC/SECAM 1Vpp±3DB (0.7V Video+0.3v Sync ) 75 ohm 480i, 576i | |
|
3G-SDI
(Optional)
|
4 | BNC |
SD-SDI , HD-SDI, 3G-SDI
1080p 60/50/30/25/24 /25(PsF)/24(PsF) 720p 60/50/25/24
1080i 1035i 625/525 line
|
|
| PREVIEW/PROGRAM | ||||
| Quantity | VGAx1 , DVIx2 | |||
| Connecor | DVI-I | |||
|
Standard
|
VGAStandard: R,G,B,Hsync,Vsync:0 to1Vpp±3dB (0.7V Video+0.3v Sync ) 75 ohm
Black level:300mV Sync-tip:0V
DVI Standard : DVI1.0
|
|||
|
Resolution
|
800x600@60Hz 1366x768@60Hz 1920x1080@50Hz
1024x768@60Hz 1440x900@60Hz 1920x1080@60Hz
1280x720@50Hz 1600x1200@60Hz 1920x1200@60Hz
1280x1024@60Hz 1680x1050@60Hz 2048x1152@60Hz
|
|||
| GENERAL | ||||
| Weight | 6.5kg | |||
| Dimensions | 8.8cm(H)x44cm(W)x30cm(D) | |||
| Power supply | 100VAC – 240VAC 50/60Hz | |||
| Power consumption | 50W | |||
| Working temperature | 0°C～45°C | |||
| Storage humidity | 10%～90% | |||
| MODLE | PRODUCT DESCRIPTION | |||
| DVX402 | 4 video inptu | |||
| DVX402-41 | 4 video inptu,SDIx1 module | |||
| DVX402-42 | 4 video inptu,SDIx2 module | |||
| DVX402-43 | 4 video inptu,SDIx3 module | |||
| DVX402-44 | 4 video inptu,SDIx4 module | |||
