P10 SMD RGB OUTDOOR LED DISPLAY MODULE SCREEN ADVERTISING BILLBOARD BOARD VIDEO SIGN
Product Details:
| Place of Origin: | china |
| Brand Name: | muenled |
| Certification: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | P5/P6/P6.25/P6.67/P8/P10/P12/P16/P20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | US$ 1550 |
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 10000PCS |
|
Detail Information |
|||
| Screen Dimension: | 960*960 | Usage: | Outdoor |
|---|---|---|---|
| Tube Chip Color: | Full Color | Display Function: | Video |
| Pixels: | P5/P6/P6.25/P6.67/P8/P10/P12/P16/P20 | ||
Product Description

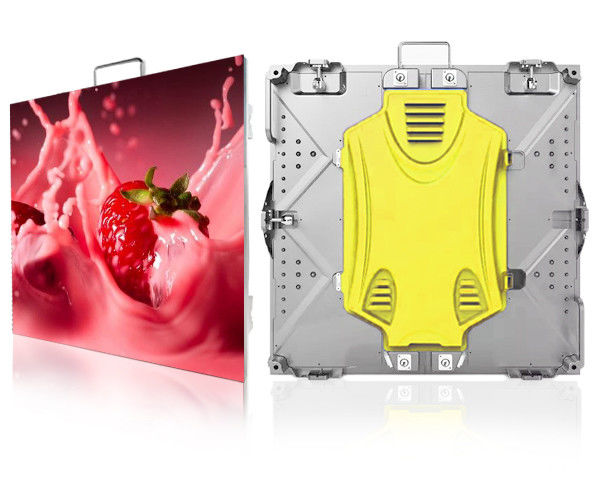

Characteristic of Outdoor Rental LED Display Screen
1. CNC + Die Casting process cabinets
The flatness of led panel surface is greatly improved by its CNC+Die Casting molding process (precision up to 0.05mm), thus it ensures the full screen’s seamless and precise installation.
2. Super Slim
The thickness is 60mm. This saves your installation space and packing size, it ensures the greatly fast movement and installation.
3. Light Weight
The weight of full panel is only 10KG, can be easily hanging up by one person, with only two person can finish 12sqm led screen installation in 30minutes, it saves your time and labor cost.
4. Convenient and Fast Installation
We adapted Plug and play designing for this series, the power and signal connector is quite easy and fast for in&out operation; and the signal connection can be in horizontal and vertical ways, it satisfied the rental application in any cases.
Advance of Die-casting rental outdoor led screen
1)LED: well-known international brand, with wide viewing angle, high brightness, little attenuation, good heat dissipation, and vivid colors.
2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective phenomena, such as dark bright, virtual light and so on.
3) Power supply: industrial-strength brand. The power t maximum power reserve of 20% the space, the range of voltage fluctuation is less 5%, high stability.
4) Connector: Aerial grade brands ensure the stable transmission of power and signal.
5) PCB Board: adopt 4-layer design.
6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person. The replacement of any cabinet can be done within 50 seconds.
Ultra-thin & Lightweight Outdoor Die-casting Aluminum Rental LED Display Screen series:
| Outdoor Die casting Aluminum Rental SMD LED Display 640mm x 640mm | ||||
| Pitch/mm | P6 | P6.67 | P8 | P10 |
| Module size/mm | 288x288 | 320x320 | 320x320 | 320x320 |
| Density of pixel/(dots/m2) | 27,777 | 22,478 | 15,625 | 10,000 |
| Led encapsulation | SMD 3535 | SMD3535 | SMD3535 | SMD3535 |
| Resolution of module | 48X48 | 48X48 | 40X40 | 32X32 |
| Optimum viewing distance | 6-50m | 7-75m | 8-75m | 10-150m |
| View angle / ° | 160 H,120 V | 160 H,120 V | 160 H,120 V | 160H,120V |
| Max power consumption/W/M2 | 1000 | 1100 | 1000 | 1000 |
| Size of cabinet/mm | 576x576 | 640X640 | 640X640 | 640X640 |
| Resolution of cabinet | 96x96 | 96x96 | 80x80 | 64x64 |
| Weight of cabinet/kg | 11 | 12 | 12 | 12 |
| Driving method | 1/8 scan constant current | 1/8 scan constant current | 1/4 scan constant current | 1/4 scan constant current |
| Refresh rate Hz/S | ≥2000 | ≥2000 | ≥2000 | ≥2000 |
| Luminance of white balance | ≥8000 nits | ≥7500 nits | ≥7000 nits | ≥6500 nits |
| Operation of Environmental Temperature/°C | below 30 to above 50 | |||
| Working vlotage | 110-220 VAC/+/- 10% | |||
| Grey scale/color | displaying colors≥16.7M(synchronized) | |||
| Brightness adjustment | 256 levels of each color(manually),100 levels of each color(automatically) | |||
| Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc | |||

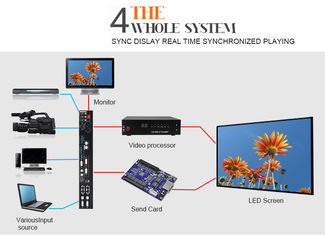

| Control system | linsn(sending card,receiving cards and Hubs) | |||
| Average of non-failure life | >50,00h | |||
| Life span | >100,000h | |||
| Defect dot rate | <0.0001 | |||
Super Slim Fixed Installation Outdoor LED Advertising Display Billboard series:
| Specification of Outdoor Full Color Video LED display Screen | |||||||||
| Classification | PH10 | PH12 | PH14 | PH16 | PH18 | PH20 | PH22 | PH25 | PH31.25 |
| Pixel pitch(mm) | 10(physical) | 12(physical) | 14(physical) | 16(physical) | 18(physical) | 20(physical) | 22(physical) | 25(physical) | 31.25 |
| 6(virtual) | 8(virtual) | 10(virtual) | 12.5(virtual) | ||||||
| Pixel configuration | 1R1G1B | 2R1G1B | 2R1G1B | 2R1G1B | 2R1G1B | 2R1G1B | 2R1G1B | 2R1G1B | 4R2G2B |
| LED package | DIP346 | DIP346 | DIP546 | DIP546 | DIP546 | DIP546 | DIP546 | DIP546 | DIP546 |
| Pixel denstiy/ sqm | 10000dots | 6844dots | 5102dots | 3906dots | 3086 dots | 2500dots | 2066dots | 1600dots | 1024dots |
| 27777 dots | 15625 dots | 10000dots | 6400dots | ||||||
| Module size(mm*mm) | 320*160 | 192*192 | 224*112 | 256*128 | 288*144 | 320*160 | 352*176 | 200*200 | 125*250 |
| Module pixel( dots) | 32*16 | 16*16 | 16*8 | 16*8 | 16*8 | 16*8 | 16*8 | 8*8 | 4*8 |
| Standard size of cabinet(mm*mm) | 960*960 | 1152*768 | 896*896 | 1024*768 | 1152*864 | 1280*960 | 1056*1056 | 1000*1000 | 1000*1000 |
| Cabinet pixel( dots) | 96*96 | 96*64 | 64*64 | 64*48 | 64*48 | 64*48 | 48*48 | 40*40 | 32*32 |
| Best view angle | 160° | 160° | 160° | 160° | 160° | 160° | 160° | 160° | 110° |
| Maximum power comsuption(W/sqm) | 750 | 700 | 600 | 1000 | 950 | 900 | 700 | 600 | 600 |
| Brightness cd/sqm | ≥8500 | ≥8000 | ≥8000 | ≥ 7500 | ≥ 6500 | ≥ 6000 | ≥ 5500 | ≥5000 | ≥ 5500 |
| Driving method | 1/4 constant driving | 1/2 contant driving | Constant static | ||||||
| Display color | 256*256*256 | ||||||||
| Refresh frequency | 3500HZ | ||||||||
| Frame frequency | 60HZ | ||||||||
| Protection Level | Front:IP65; back:IP65 | ||||||||
| Working Voltage | AC220/110±10% | ||||||||
| Working environment temperature | -40º degree - +50º degree | ||||||||
| Life span | >100000hours | ||||||||
