Psc-5.9 Rental Led Display /Stage Background LED Video Wall Supply preferred muenled
Product Details:
| Place of Origin: | china |
| Brand Name: | muenled |
| Certification: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | Psc-5.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10SQM |
|---|---|
| Price: | $1048 |
| Packaging Details: | flijht case |
| Delivery Time: | 7 days |
| Supply Ability: | >9999PCS |
|
Detail Information |
Product Description
1.Location Pin in the side and top work with the fast lock to better ensure the flatness and tidiness of the screen.
2.The top location pins are removable,easy for changing cabinet after setting up the whole display.
3.Labor-saved flywheel style fast lock works with Handle in the side and top promise faster installation/dismantling of the screen.

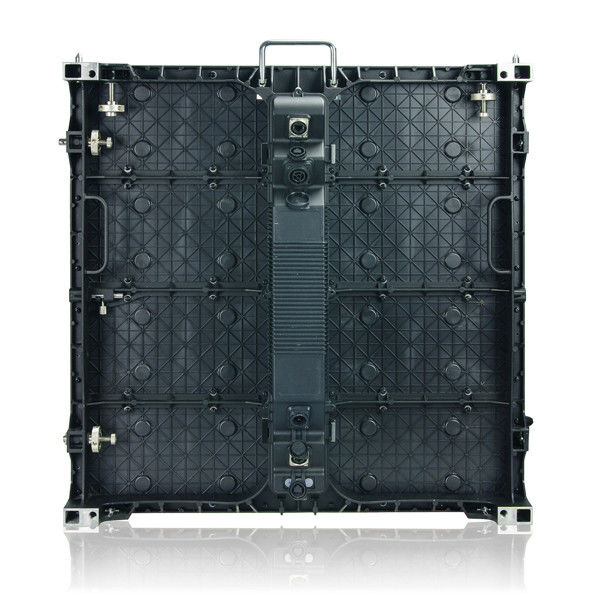

4.Open architecture system cabinet, all the screws in the modules are exposed at the back to offer the convenience maintenance.
5.Smart signal, power indicators and test button can assure you a fast way to find the problems.
| Usit Module | NO. | Psc-5.9 Rental Led Display |
| Pixel pitch | 5.9mm | |
| Size of pixel | SMD3528(3 in 1) | |
| Pixel configuration | 1R1PG1B | |
| Size of block module | 320mm×160mm | |
| Resolution of module | 54×27 | |
| Density | 28476dots/m² | |
| Module power | 30W | |
| Cabinet | Cabinet material | Alu cabinet |
| Size of cabinet(l*h*t) | 640mm×640mm×125mm | |
| Weight of cabinet | 11.5KG | |
| Support hanging or not | yes | |
| Main Parameter | Best viewing distance | >6m |
| Best viewing angle | ≤140° | |
| Max power consumption | <650W/m² | |
| Colors | >16.7M | |
| Gray scale | 14bits | |
| Color temperature | 6500K | |
| Control method | Synchronization | |
| Driving device | Constant current | |
| Driving method | 1/9 scanning | |
| Frame frequency | 60Hz | |
| Refresh frequency | 1400-4800Hz | |
| Brightness | >5500cd/m² | |
| Working voltage | AC220V/110V±10％ | |
| Working temperature | -20℃~50℃±10％ | |
| Out-of control point | <0.0001 | |
| Brightness Control | 256 grade | |
| Mtbf | 10,000Hours | |
| Life span | 100,000Hours |
As the figure shows, you can connect nearly all the video devices with your LED display. Video processor is a kind of devices that can convert the other video signal to DVI signal. And then the DVI signal will goes to the LED sender, and send from the CAT5 to the display.
For the further use, you can use the vidoe device like switcher, scaler and video matrix with our LED display.
