Sgr-3.1 Rental Led Display /Stage Background LED Video Wall Supply preferred muenled
Product Details:
| Place of Origin: | china |
| Brand Name: | muenled |
| Certification: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | Sgr-3.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10SQM |
|---|---|
| Price: | $1048 |
| Packaging Details: | flijht case |
| Delivery Time: | 7 days |
| Supply Ability: | >9999PCS |
|
Detail Information |
Product Description
P3.1 high density LED display is the product tailor-made for the indoor advertising LED displays users with a number of innovative design based on the concept of “do not compromise on the cost ,to be more perfect,to be more crafted”.
Sagittarius series

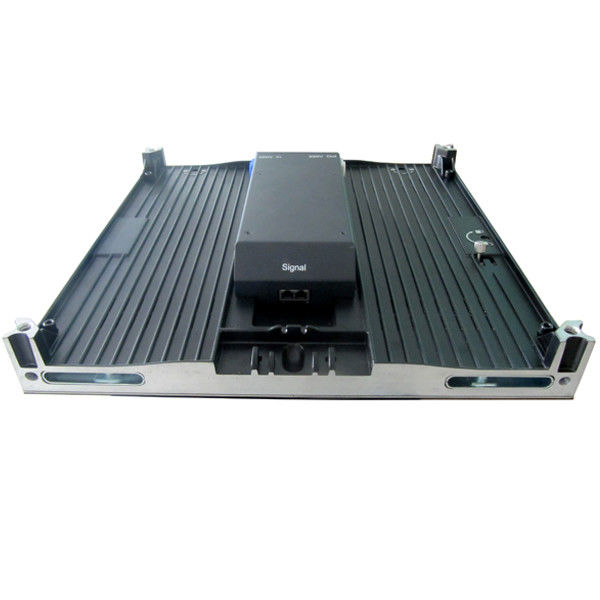

Indoor SMD Die-casting ultra slim cabinet
1.Luxury,we have strict control in every step from design, production,components to the process. It’s very excellent and perfect.Yet it is
more like the art of muenled than a commodity.
2.Super high-definition picture and ultra-light design is an excellent fusion of art and technology; 2400Hz high refresh rate makes each
image vivid, clear and fascinating;Only 5.5 kg aluminium cabinet,the pre-installation design for module magnet makes the maintenance more
convenient and splice seamless.
4.140 degrees super-wide angle, Sagittarius small pitch series create a gorgeous and elegant visual feast for you,whether at the spacious and
magnificent opera house,or in the serious and neat traffic command center . muenled small pitch series bring you a superior service.
| Unit Module | NO. | Sgr-3.1 Rental Led Display |
| Pixel pitch | 3.1mm | |
| Size of Pxiel | SMD2121(3 in 1) | |
| Size of block module | 200mm×100mm | |
| Resolution of module | 64×32 | |
| Density | 102400dots/m² | |
| Module power | 10W | |
| Cabinet | Cabinet material | Alu cabinet |
| Size of cabinet(l*h*t) | 400mm×300mm×75mm | |
| Weight of cabinet | 5.5KG | |
| Support hanging or not | Yes | |
| Main Parameter | Best viewing distance | >3m |
| Best viewing angle | ≤140° | |
| Max power consumption | <625/m² | |
| Colors | >16.7M | |
| Gray scale | 16bits | |
| Color temperature | 6500K | |
| Control method | Synchronization | |
| Driving device | Constant current | |
| Driving method | 1/16 scanning | |
| Frame frequency | 60Hz | |
| Refresh frequency | 1200-4800Hz | |
| Brightness | 600-1000cd/m² | |
| Working voltage | AC220V/110V±10％ | |
| Working temperature | -20℃~50℃±10％ | |
| Out-of control point | <0.0001 | |
| Brightness Control | 256 grade | |
| Mtbf | 10,000Hours | |
| Life span | 100,000Hours |
As the figure shows, you can connect nearly all the video devices with your LED display. Video processor is a kind of devices that can convert the other video signal to DVI signal. And then the DVI signal will goes to the LED sender, and send from the CAT5 to the display.
For the further use, you can use the vidoe device like switcher, scaler and video matrix with our LED display.
