Psc-7.6 Rental Led Display /Stage Background LED Video Wall Supply preferred muenled
Product Details:
| Place of Origin: | china |
| Brand Name: | muenled |
| Certification: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | Psc-7.6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10SQM |
|---|---|
| Price: | $1048 |
| Packaging Details: | flijht case |
| Delivery Time: | 7 days |
| Supply Ability: | >9999PCS |
|
Detail Information |
Product Description

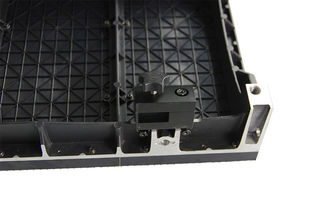

1.Location pin in side and top work with fast lock ensure better flatness and tidiness of screen.
2.Top location pins are removable, easy for changing cabinet after setting up the whole display.
3.Labor-saved flywheel style fast lock works with handle in side and top, promise faster install/dismantle.
4.IP65 full-closed modules and open system architecture cabinets, all screws in modules are exposed, this offers convenient maintenance.
5.Smart signal, power and test indicator tells problems in the first time.
| Unit Module | NO. | Psc-7.6 Rental Led Display |
| Pixel pitch | 7.6mm | |
| Size of pixel | HB-SMD3030(3 in1) | |
| Pixel configuration | 1R1G1B | |
| Size of block module | 320mm×160mm | |
| Resolution of module | 42×21 | |
| Density | 17222dots/m² | |
| Module power | 34W | |
| Cabinet | Cabinet material | Alu cabinet |
| Size of cabinet(l*h*t) | 640mm×640mm×125mm | |
| Weight of cabinet | 12KG | |
| Support hanging or not | yes | |
| Main Parameter | Best viewing distance | >8m |
| Best viewing angle | ≤140° | |
| Max power consumption | <650W/m² | |
| Colors | >16.7M | |
| Gray scale | 16bits | |
| Color temperature | 6500K | |
| Control method | Synchronization | |
| Driving device | Constant current | |
| Driving method | 1/7 scanning | |
| Frame frequency | 60Hz | |
| Refresh frequency | 1200-4800Hz | |
| Brightness | >5500cd/m² | |
| Working voltage | AC220V/110V±10％ | |
| Working temperature | -20℃~50℃±10％ | |
| Out-of control point | <0.0001 | |
| Brightness Control | 256 grade | |
| IP grade | IP65 | |
| Mtbf | 10,000Hours | |
| Life span | 100,000Hours |
As the figure shows, you can connect nearly all the video devices with your LED display. Video processor is a kind of devices that can convert the other video signal to DVI signal. And then the DVI signal will goes to the LED sender, and send from the CAT5 to the display.
For the further use, you can use the vidoe device like switcher, scaler and video matrix with our LED display.
