Sco-4.8 Rental Led Display /Stage Background LED Video Wall Supply preferred muenled
Product Details:
| Place of Origin: | china |
| Brand Name: | muenled |
| Certification: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | Sco-4.8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10SQM |
|---|---|
| Price: | $10811 |
| Packaging Details: | flijht case |
| Delivery Time: | 7 days |
| Supply Ability: | >9999PCS |
|
Detail Information |
Product Description
Scorpio series

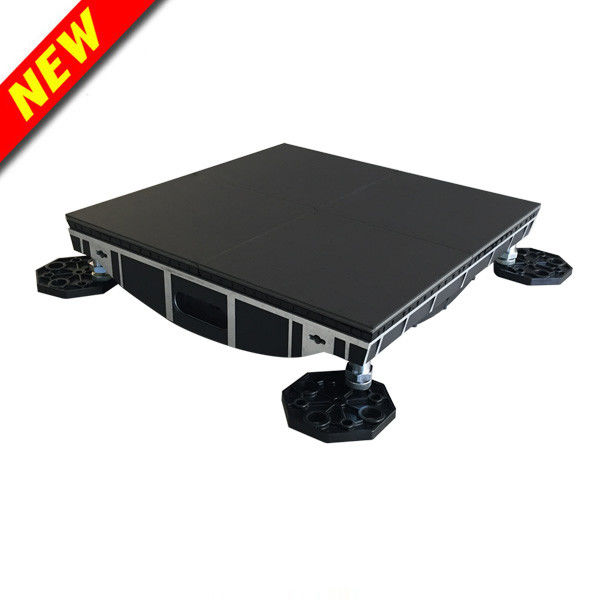

Outdoor SMD Die-casting Floor Display
Scorpio series Floor Screen (High rigidity and Strong)
1.High rigidity. Every square meter can load a ton!
2.Mask covered with polycarbonate which makes it water proof, non-slip and anti-collision.
3.Seamless connection and fast installation,4 screw fine-tunning structure design makes it easier use on un-flatness ground.
4.Chuck maintenance design makes floor display truly become a floor tile, where there is a need there is an P4.8.Replacement and maintenance are just like bricklaying.
| Unit Module | NO. | Sco-4.8 Rental Led Display |
| Pixel pitch | 4.8mm | |
| Pixel configuration | SMD2121(3 in 1) | |
| Size of block module | 250mm×250mm | |
| Resolution of module | 52×52 | |
| Density | 43264dots/m² | |
| Module power | 45W | |
| Cabinet | Cabinet material | Alu cabinet |
| Size of cabinet(l*h*t) | 500mm×500mm×105mm | |
| Weight of cabinet | 12.5KG | |
| Support hanging or not | YES | |
| Main Parameter | Best viewing distance | >5m |
| Best viewing angle | ≤140° | |
| Max power consumption | <900W/m² | |
| Colors | >16.7M | |
| Gray scale | 16bits | |
| Color temperature | 6500K | |
| Control method | Synchronization | |
| Driving device | Constant current | |
| Driving method | 1/13 scanning | |
| Frame frequency | 60Hz | |
| Refresh frequency | 1500-4800Hz | |
| Brightness | 1000-1500cd/m² | |
| Working voltage | AC220V/110V±10％ | |
| Working temperature | -20℃~50℃±10％ | |
| Out-of control point | <0.0001 | |
| Brightness Control | 256 grade | |
| IP grade | IP65 | |
| Mtbf | 10,000Hours | |
| Life span | 100,000Hours |
As the figure shows, you can connect nearly all the video devices with your LED display. Video processor is a kind of devices that can convert the other video signal to DVI signal. And then the DVI signal will goes to the LED sender, and send from the CAT5 to the display.
For the further use, you can use the vidoe device like switcher, scaler and video matrix with our LED display.
