V8 Rental Led Display /Stage Background LED Video Wall Supply preferred muenled
Product Details:
| Place of Origin: | china |
| Brand Name: | muenled |
| Certification: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | V8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10SQM |
|---|---|
| Price: | $588 |
| Packaging Details: | flijht case |
| Delivery Time: | 7 days |
| Supply Ability: | >9999PCS |
|
Detail Information |
Product Description
V series

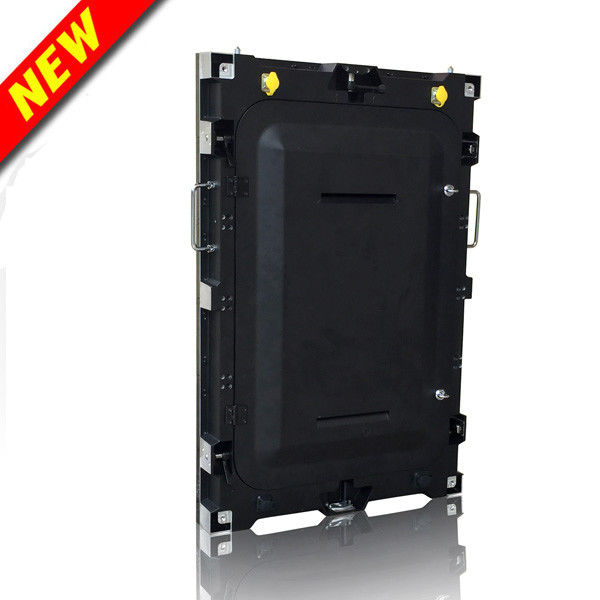

Outdoor SMD/DIP Die-casting cabinet(640*960)
1.Physical pixel pitch of 8mm and 10mm.
2.Fast installation can be achieved by a tool-free lock system.
3.Outdoor application both for rental and fixed installation.
4.Slim panel size of only 101mm.
5.Super lightweight panel at 22Kg each.
6.Can be used as perimeter display with a specially-made bracket.
| Unit Module | NO. | V8 Rental Led Display |
| Pixel pitch | 8mm | |
| Size of Pxiel | SMD3030(3 in 1) | |
| Size of block module | 320mm×160mm | |
| Resolution of module | 40×20 | |
| Density | 15625dots/m² | |
| Module power | 35W | |
| Cabinet | Cabinet material | Alu cabinet |
| Size of cabinet(l*h) | 640mm×960mm×101mm | |
| Weight of cabinet | 22KG | |
| Support hanging or not | Yes | |
| Main Parameter | Best viewing distance | >8m |
| Best viewing angle | ≤140° | |
| Max power consumption | <780W/m² | |
| Average power consumption | <260W/㎡ | |
| Colors | >16.7M | |
| Gray scale | 16bits | |
| Color temperature | 6500K | |
| Control method | Synchronization | |
| Driving device | Constant current | |
| Driving method | 1/5 scanning | |
| Frame frequency | 60Hz | |
| Refresh frequency | 2000Hz | |
| Brightness | 5500cd/m² | |
| Working voltage | AC220V/110V±10％ | |
| Working temperature | -20℃~50℃±10％ | |
| Out-of control point | <0.0001 | |
| Brightness Control | 256 grade | |
| Mtbf | 10,000Hours | |
| Life span | 100,000Hours |
As the figure shows, you can connect nearly all the video devices with your LED display. Video processor is a kind of devices that can convert the other video signal to DVI signal. And then the DVI signal will goes to the LED sender, and send from the CAT5 to the display.
For the further use, you can use the vidoe device like switcher, scaler and video matrix with our LED display.
Inquire for the Price and Solution >>> Latest offer
