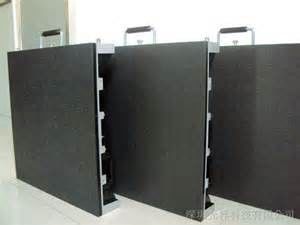

MUENLED Indoor Ph6mm 576mmx576mm Less Weight LED Display Panel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MUENLED |
| Certification: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | PH6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | US$ 848 |
| Packaging Details: | flijht case |
| Delivery Time: | 7 days |
| Payment Terms: | T/T;P/L |
| Supply Ability: | 10000PCS |
|
Detail Information |
|||
| Usage: | Indoor | Tube Chip Color: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels: | 6mm |
Product Description
- Model: LCC-P6-I/S/T-576X576
- Shipping Weight: 14kg
- 146 Units in Stock
Indoor Ph6mm 576mmx576mm Less Weight LED Display Panel-12.5kg/cabinet
Delivery time: 10-15 days, Material: Steel LED Cabinet
Resolution:96x96dots, including Receiving Card,Power Supply,DATA and Power Cable, Epistar LED,2 Years Warranty.
Attention: The price is NOT including the Shipping Cost. Before you order,please contact us to confirm the shipping cost!
|
LED Module |
||
|
Resolution |
32(H)×32(V) |
|
|
Pitch |
6mm |
|
|
Density |
27778 pixels/㎡ |
|
|
LED Arrangement |
1R1G1B |
|
|
Driver Mode |
Dynamic 1/8 Duty constant current |
|
|
Size |
192 mm×192 mm |
|
|
Mask |
Pure Black mask-high contrast screen |
|
|
LED Panel |
||
|
Resolution |
96(H)×96(V) |
|
|
Size |
576mm× 576mm |
|
|
Weight |
12.5KG |
|
|
Operation Power |
AC100-240V 50-60HZ Switch-able |
|
|
Maxim Power Consumption |
1000 W/m2 |
|
|
Average Power Consumption |
500 W/m2 |
|
|
Electricity Parameter |
||
|
Optical Ratings |
||
|
Brightness |
≥1500cd/㎡ |
|
|
View Angle |
140 degree ( horizontal) 140degree(vertical) |
|
|
View Distance |
4m-60m |
|
|
Gray Scale |
8bits input, correction with 14bits |
|
|
Display Color |
16.7M |
|
|
Brightness Adjustment |
100 levels |
|
|
Control System |
||
|
Correction Scale Level |
16bits |
|
|
Frame Update Frequency |
60Hz |
|
|
Screen Refresh Frequency |
480Hz |
|
|
Gamma Correction |
-5.0—5.0 |
|
|
Support Input |
Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
|
|
Control Distance |
Ethernet cable 100m, optical fiber 5km |
|
|
Support VGA Mode |
800×600,1024×768,1280×1024,1600×1200 |
|
|
Color Temperature |
5000-9300 adjustable |
|
|
Brightness Correction |
dot by dot, module by module, cabinet by cabinet |
|
|
Reliability |
||
|
Operating Temp. |
-20-60 Celsius degree |
|
|
Operating Humidity |
10-95% RH |
|
|
Operating Life |
100,000 hours |
|
|
MTBF |
5000 hours |
|
|
Continuous Working Time |
≥48 hours |
|
|
Protection Level |
IP54 |
|
|
Out of Control Pixel Rate |
0.01% |
|
