Ph6mm Die-Casting Aluminum LED Dispay Panel
Product Details:
| Place of Origin: | china |
| Brand Name: | muenled |
| Certification: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | PH6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3PCS |
|---|---|
| Price: | US$ 292.00 |
| Packaging Details: | flijht case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 10000PCS |
|
Detail Information |
|||
| Screen Dimension: | 576*576 | Usage: | Indoor |
|---|---|---|---|
| Tube Chip Color: | Full Color | Display Function: | Video |
| Pixels: | 6 | ||
Product Description
MUENLED provide the Ph6mm Indoor LED Display Cabinet, it has the best price and good quality.6mm indoor led screen is widely used for indoor shopping center.
The specifications is:
Ph6mm Indoor LED Display Screen
Panel Size: 576mmx576mm
Resolution:96x96 dots
Material: Steel/Aluminum
Warranty: 2 years with CE,RoHs Certificates. Inquire for the Price and Solution >>> Latest offer
|
LED Module |
||
|
Resolution |
32(H)×32(V) |
|
|
Pitch |
6mm |
|
|
Density |
27778 pixels/㎡ |
|
|
LED Arrangement |
SMD 3IN1 |
|
|
Driver Mode |
Dynamic 1/8 Duty constant current |
|
|
Size |
192 mm×192 mm |
|
|
Mask |
Pure Black mask-high contrast screen |
|
|

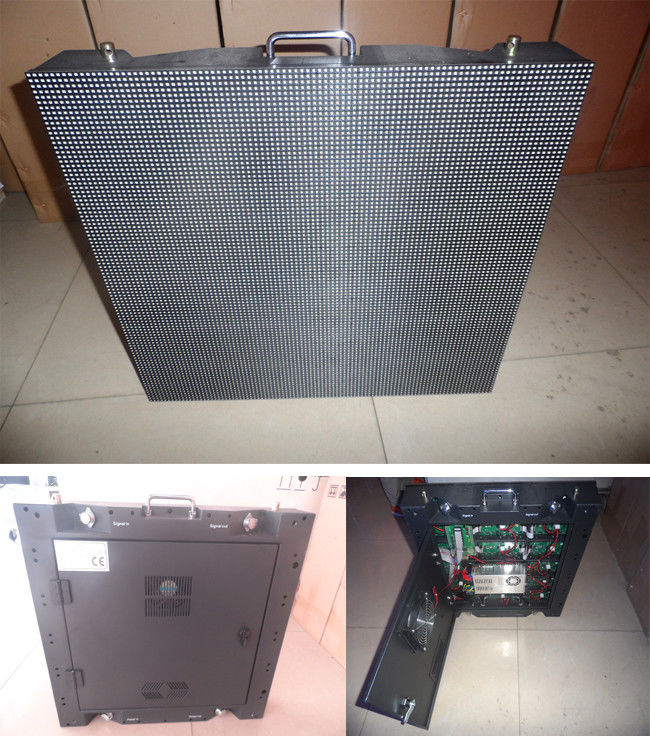

LED Display Cabinet Pictures:
|
||
|
Resolution |
96(H)×96(V) |
|
|
Size |
576mm× 576mm |
|
|
Weight |
25KG |
|
|
Operation Power |
AC100-240V 50-60HZ Switch-able |
|
|
Maxim Power Consumption |
980 W/m2 |
|
|
Average Power Consumption |
550 W/m2 |
|
|
Electricity Parameter |
||
|
Optical Ratings |
||
|
Brightness |
≥1500cd/㎡ |
|
|
View Angle |
140 degree ( horizontal) 140degree(vertical) |
|
|
View Distance |
4m-60m |
|
|
Gray Scale |
8bits input, correction with 14bits |
|
|
Display Color |
16.7M |
|
|
Brightness Adjustment |
100 levels |
|
|
Control System |
||
|
Correction Scale Level |
16bits |
|
|
Frame Update Frequency |
60Hz |
|
|
Screen Refresh Frequency |
480Hz |
|
|
Gamma Correction |
-5.0—5.0 |
|
|
Support Input |
Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
|
|
Control Distance |
Ethernet cable 100m, optical fiber 5km |
|
|
Support VGA Mode |
800×600,1024×768,1280×1024,1600×1200 |
|
|
Color Temperature |
5000-9300 adjustable |
|
|
Brightness Correction |
dot by dot, module by module, cabinet by cabinet |
|
|
Reliability |
||
|
Operating Temp. |
-20-60 Celsius degree |
|
|
Operating Humidity |
10-95% RH |
|
|
Operating Life |
100,000 hours |
|
|
MTBF |
5000 hours |
|
|
Continuous Working Time |
≥48 hours |
|
|
Protection Level |
IP54 |
|
|
Out of Control Pixel Rate |
0.01% |
|
