Ph6mm Die-Casting Aluminum LED Dispay Panel
Product Details:
| Place of Origin: | china |
| Brand Name: | muenled |
| Certification: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | PH6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3PCS |
|---|---|
| Price: | US$ 292.00 |
| Packaging Details: | flijht case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 10000PCS |
|
Detail Information |
|||
| Screen Dimension: | 576*576 | Usage: | Indoor |
|---|---|---|---|
| Tube Chip Color: | Full Color | Display Function: | Video |
| Pixels: | 6 | ||
Product Description
MUENLED provide the Ph6mm Die-Casting Aluminum LED Display Cabinet, has the less weight and high resolution. it is widely used for indoor rental purpose.
The specifications is:
Ph6mm Rental LED Panel
Panel Size: 576mmx576mm
Resolution:96x96 dots
Material: Die-Casting Aluminum
Warranty: 2 years with CE,RoHs Certificates. Inquire for the Price and Solution >>> Latest offer
|
LED Module |
||
|
Resolution |
48(H)×48(V) |
|
|
Pitch |
6mm |
|
|
Density |
27778 pixels/㎡ |
|
|
LED Arrangement |
SMD 3IN1 |
|
|
Driver Mode |
Dynamic 1/8 Duty constant current |
|
|
Size |
288 mm×288 mm |
|
|
Mask |
Pure Black mask-high contrast screen |
|
|

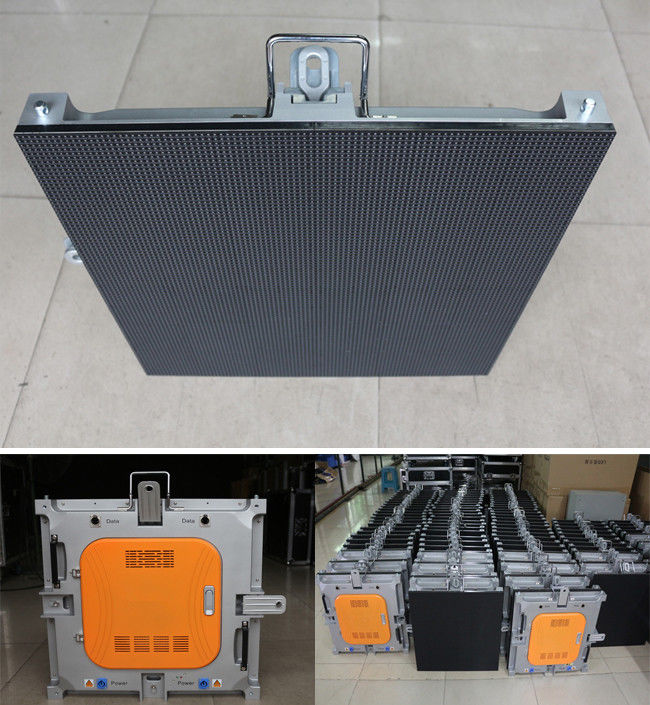

LED Display Cabinet Pictures:
|
||
|
Resolution |
96(H)×96(V) |
|
|
Size |
576mm× 576mm |
|
|
Weight |
14KG |
|
|
Operation Power |
AC100-240V 50-60HZ Switch-able |
|
|
Maxim Power Consumption |
980 W/m2 |
|
|
Average Power Consumption |
550 W/m2 |
|
|
Electricity Parameter |
||
|
Optical Ratings |
||
|
Brightness |
≥1500cd/㎡ |
|
|
View Angle |
140 degree ( horizontal) 140degree(vertical) |
|
|
View Distance |
4m-60m |
|
|
Gray Scale |
8bits input, correction with 14bits |
|
|
Display Color |
16.7M |
|
|
Brightness Adjustment |
100 levels |
|
|
Control System |
||
|
Correction Scale Level |
16bits |
|
|
Frame Update Frequency |
60Hz |
|
|
Screen Refresh Frequency |
480Hz |
|
|
Gamma Correction |
-5.0—5.0 |
|
|
Support Input |
Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
|
|
Control Distance |
Ethernet cable 100m, optical fiber 5km |
|
|
Support VGA Mode |
800×600,1024×768,1280×1024,1600×1200 |
|
|
Color Temperature |
5000-9300 adjustable |
|
|
Brightness Correction |
dot by dot, module by module, cabinet by cabinet |
|
|
Reliability |
||
|
Operating Temp. |
-20-60 Celsius degree |
|
|
Operating Humidity |
10-95% RH |
|
|
Operating Life |
100,000 hours |
|
|
MTBF |
5000 hours |
|
|
Continuous Working Time |
≥48 hours |
|
|
Protection Level |
IP54 |
|
|
Out of Control Pixel Rate |
0.01% |
|
