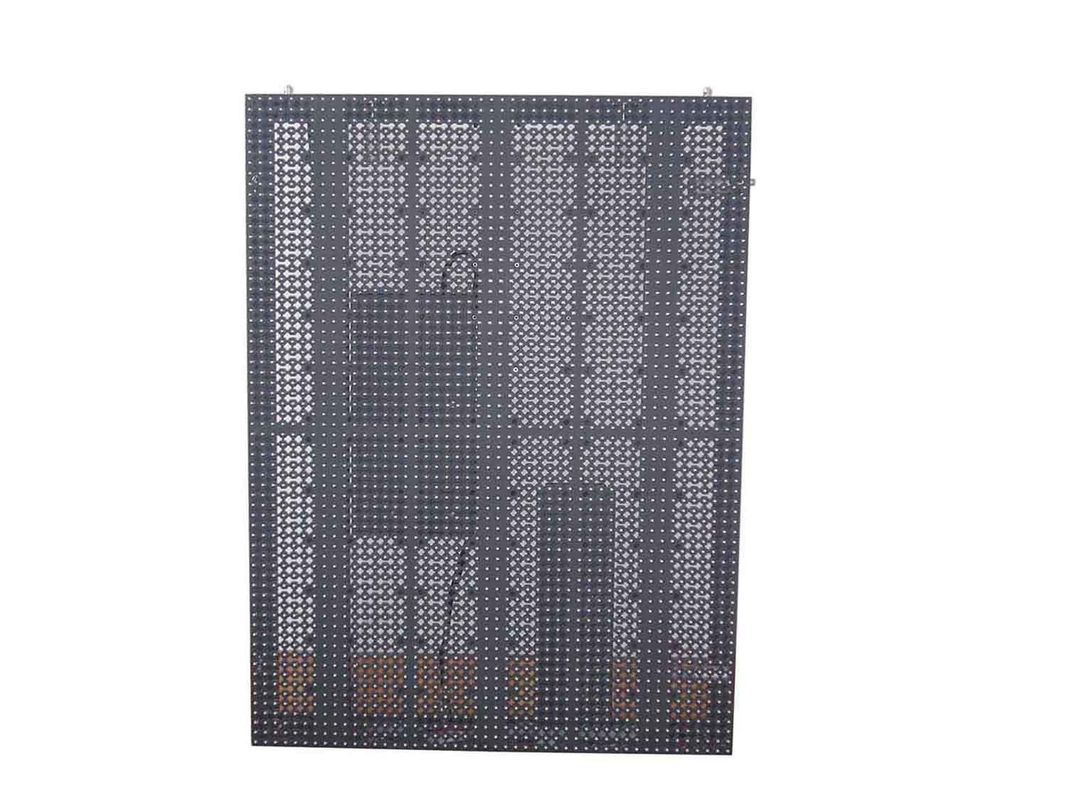

MUENLED-PH16-outdoor LED color screens
Product Details:
| Place of Origin: | china |
| Brand Name: | muenled |
| Certification: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | PH16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3PCS |
|---|---|
| Price: | US$ 584 |
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 10000PCS |
|
Detail Information |
|||
| Usage: | Outdoor | Tube Chip Color: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels: | 16mm |
Product Description
Features:
● Modular design,fast installation,wind through and light through without other cooling equipment;bigger pixel,most cost effective;easy to install and maintain.
● Light-tight design without effect for ventilation on the back and contrast grade.Noise-free operation and no fans design,environment friendly,low power consumption,suitable for background at large size.
● Easy to produce and maintain,good cooling,stable performance.
● Bright colors,good display performance,fast response,longer lifespan and environmental protection and energy saving.
● Available for stacking installation,floor installation and hanging installation,suitable for different set up for stages with perfect performance at the temperature range of -30℃~60℃.
|
Parameters |
PH16 Outdoor DIP series |
|
Pixel Pitch |
16mm |
| Piixel Density |
3906 Dots/m² |
| Pixel Configuration |
1R1G1B |
|
Cabinet Dimension |
512*1024*65mm |
|
Module pixel |
32*64dots |
|
Displays colors |
10.7Million color |
|
Protection Level |
IP65 |
|
Control Mode |
Synchronous/Asynchronous |
| Driving Method |
Constant Current 1/4scan |
|
Refresh Rate |
1000Hz |
|
Viewing Angle (H/V) |
H:110° V:55° |
|
Consumption |
Max.consumption 500w/m² Average.consumption 200w/m² |
|
LED Lamp Parameters |
(R) γ d:(625-628nm) IV:(1000mcd) (G) γ d:(523-525nm) IV:(2200mcd) (B) γ d:(470-472nm) IV:(500mcd) |
|
Comunication Type |
3G WIFI Cats ≤ 100m Multimode optical fiber ≤ 500m Single Mode optical fiber ≤ 1500m |
| The above content is for reference | |
 |
|
|
|
|
Inquire for the Price and Solution >>> Latest offer
