Outdoor fixed led display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MUENLED |
| Certification: | CCC、CE、RoHS、FCC |
| Model Number: | P6.P8.P10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10SQM |
|---|---|
| Packaging Details: | wooden case |
| Delivery Time: | 7-15DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 999SQM |
|
Detail Information |
|||
| NAME: | Outdoor Fixed Led Display | Pixel: | 1R1G1B |
|---|---|---|---|
| Cabinet Material: | Cold Rolled Steel Or Aluminum | Refresh Rate: | 300-3000HZ Adjustable |
| LED Life: | 100,000 Hours | Supply Voltage: | AC220V/50HZ; AC110V/60HZ |
| Operating Temperature: | -20℃ ~ +50℃ | Operating Humidity: | 10% - 90% |
| Gray Scale: | Red, Green And Blue Each 16K | Display Color: | 4096 Billion |
| IP Rating: | Front IP65 | Display Capability: | Text, Graph And Video |
| Compliant Standard: | CCC、CE、RoHS、FCC | E-MAIL: | Mike@mlxled.com |
| PHONE: | +86 13510945503 | ||
Product Description
 |
|
|
|
|
|

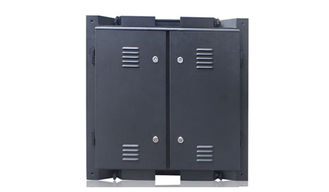

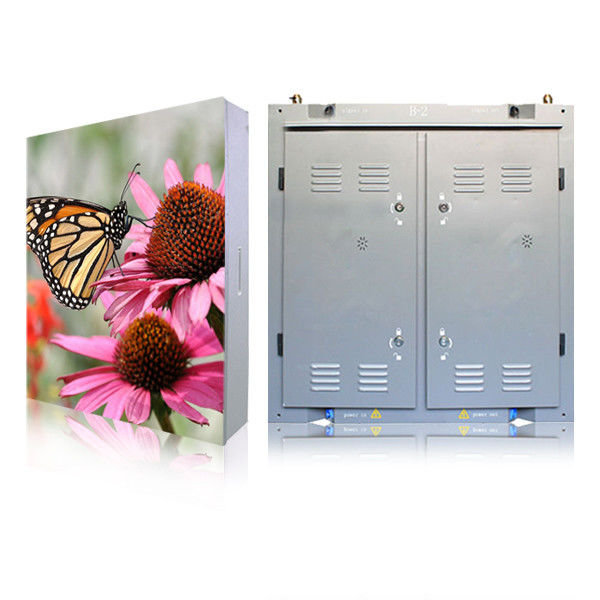

Cabinet structure is with light weight and standardization: adopting high strength metal process, achieving high precision, light weight and other outstanding features; uniform image picture with high refresh frequency and gray level to realize the vivid effect.
High bearing strength and fast installation through the connecting plate. With flexible installation, such as embedded installation, post mounting,etc. It would not occur the extrusion and deformation phenomenon between the modules when the display is working under the high and low temperatures.
Achieve low heat, low noise and low radiation: through the good structure design, ensure Low decibel value and stable performance when it works in the normal temperature; Passed the EMC test.
High voltage thermal pull out plug in application: It will not strike fire during pull out the plug process, and fully accomplish the phenomenon such as waterproof, anti-interference, corrosion resistance,etc.
| Items | MUEN-FO6 | MUEN-FO8 | MUEN-FO8 | MUEN-FO10 | MUEN-FO16 |
| Pixel | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Configuration | SMD3535 | SMD3535 | DIP246 | DIP346 | DIP546 |
| Pixel Pitch | 6mm | 8mm | 8mm | 10mm | 16mm |
| Pixel Density | 27,777 | 15,625 | 15,625 | 10,000 | 3,906 |
| Module Size(mm) | 192x96/ 192x192 | 256x128 | 256x128 | 160x160 | 256x128/256x256 |
| Pixels/Module | 32x16 or 32x32 | 32x16 | 32x16 | 16x16 | 16x8/16 |
| Cabinet Size | 960x960x190 | 1024x1024 | 1024x1024 | 960x960x190 | 1024x1024 |
| (mm)(WxHxD) | x190 | x190 | x190 | ||
| Pixels/Cabinet | 160x160 | 128x128 | 128x128 | 96x96 | 64x64 |
| Cabinet Weight | 42KG | 48KG | 58KG | 51KG | 58KG |
| Brightness | >6000cd/㎡ | >5000cd/㎡ | >7000cd/㎡ | >7000cd/㎡ | >7000cd/㎡ |
| Viewing Distance | >6m | >8m | >8m | >10m | >16m |
| Power | Max: 1300 | Max: 1000 | Max: 1000 | Max: 1000 | Max: 1000 |
| Consumption | Ave: 260 | Ave: 260 | Ave: 300 | Ave: 300 | Ave: 200 |
| (W/㎡) | |||||
| Driver Mode | 1/4 scan | 1/4 scan | 1/4 scan | 1/4 scan | Static Latching |
| Viewing Angle | H: 120°; V: 120° | H: 110°; V: 60° | |||
| Cabinet Material | Cold Rolled Steel or aluminum | ||||
| Refresh Rate | 300-3000HZ adjustable | ||||
| LED Life | 100,000 hours | ||||
| Supply Voltage | AC220V/50HZ; AC110V/60HZ | ||||
| Operating Temperature | -20℃ ~ +50℃ | ||||
| Operating Humidity | 10% - 90% | ||||
| Gray Scale | Red, Green and Blue each 16K | ||||
| Display Color | 4096 Billion | ||||
| IP Rating | Front IP65 | ||||
| Display Capability | Text, Graph and Video | ||||
| Compliant Standard | CCC,CE,RoHS,FCC | ||||
Energy Saving≥50%, Environment Protection
Adopt top high brightness with low power consumption LED lamp,energy saving≥30%, if adopt 28 kinds of main patent technique, entire energy saving ≥50%, environment protection. Pioneer in outdoor mature HD LED Display, all advanced specifications 2 years earlier than others, successful cases around the world.
High IP Rating IP66, Safety and Reliable
Special waterproof design protect your product out of water , the high quality is worth to trust.
High contrast and high image quality.
High quality LED lamp with black body structure and black lamp mask to provide 3000:1 contrast and clearer and more bright-colored image
high gray level, more delicate display performance
The LED Screen is manufactured by using best quality material, purchased from most reputed vendors. The final products feature supreme quality and offers best outputs. High refresh rate and 16bit gray scale ensures the picture quality remains seamless.
Outdoor fixed led display
Outdoor fixed led display
Outdoor fixed led display
Outdoor fixed led display
Outdoor fixed led display
Outdoor fixed led display
Outdoor fixed led display
Outdoor fixed led display
Outdoor fixed led display
Outdoor fixed led display
Outdoor fixed led display
Outdoor fixed led display
Outdoor fixed led display
Outdoor fixed led display
Outdoor fixed led display
Outdoor fixed led display
Outdoor fixed led display
How we Garranty Product Quality

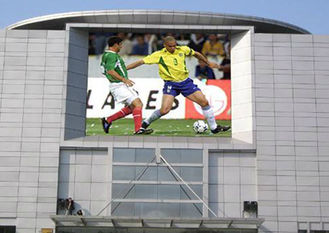

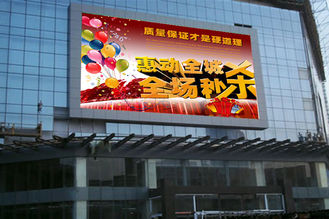

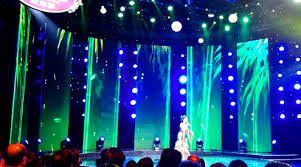

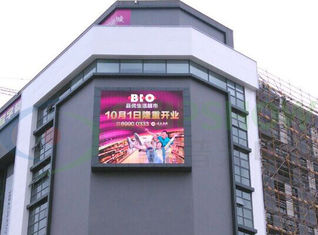

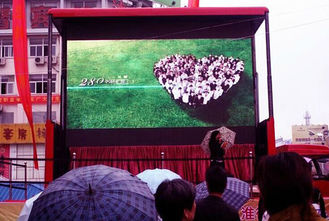

Applications
Certifications
Company Information
FAQ
Q1. Can I have a sample order for led Screen?
A: Yes, we welcome sample order to test and check quality. Both for LED moduel or a whole screen
Q2. What about the lead time?
A:Order less than 100 square meter led time take 15 working days
Q3. Do you have any MOQ limit for led Screen order?
A: Low MOQ, 1 square meter or a moudle checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent. It usually take 20 30 day on sea. a few days for customer clearance
Q5. How to proceed an order for led Screen?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led Display product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new module with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
