soft led display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | muenled |
| Certification: | CCC/TUV-CE/ETL/RoHS/FCC, etc. |
| Model Number: | p6,p8,p10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10SQM |
|---|---|
| Packaging Details: | wooden case |
| Delivery Time: | 7-15Days |
| Supply Ability: | 999SQM |
|
Detail Information |
|||
| Product Name: | Soft Led Display | ||
|---|---|---|---|
Product Description
 |
|
|
|
|
|
Product name:soft led display

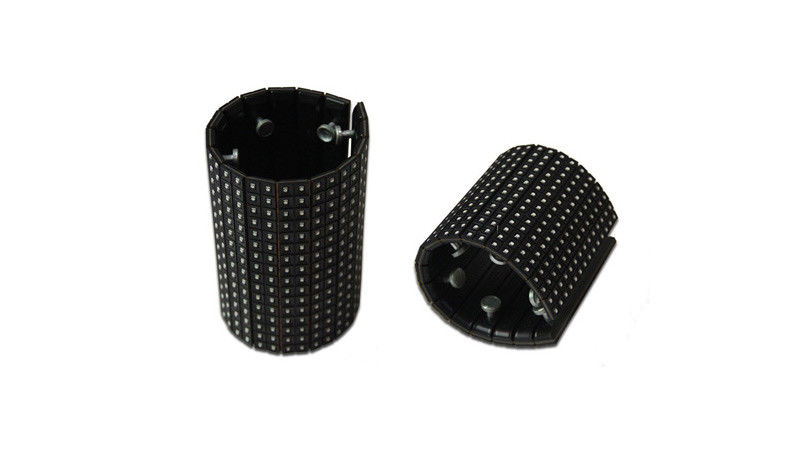

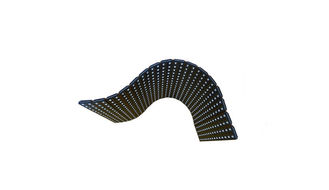

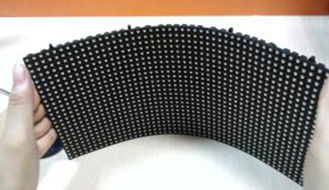

1>Modular small-unit and flexible design, makes possibility of more complicated shapes of video show.

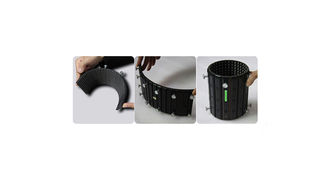

2>Assembling screen with modules directly, saving time and effort, easy operation.

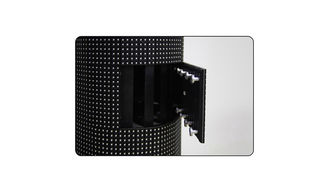

3>Magnet connection, apt to assemble & disassemble, maintain & replace.
4>No cabinet metal frame, drastically deducting the screen weight.
5>Strict quality control and long-term application experience verified the stablity and excellent performance.
6>Widely applied in shaped stage background/exhibition/shopping mall etc.
| Model | LW-S601 | LW-S801 | LW-S1001 |
| Pixel pitch | 6mm | 8mm | 10mm |
| Configuration | SMD3528 | ||
| Module dimension | 288x120mm | 256x112mm | 320x160mm |
| Module resolution | 48x20dots | 32x14dots | 32x16dots |
| Module weight | 0.18kg | 0.16kg | 0.21kg |
| Pixel density | 27777dots/㎡ | 15625dots/㎡ | 10000dots/㎡ |
| Flatness error | ≤0.5mm | ||
| Viewing angle | 140°/140°(Horizontal/Vertical) | ||
| Brightness | >1600cd/㎡ | >1200cd/㎡ | >900cd/㎡ |
| Brightness adjustment | 256 levels by software | ||
| Contrast | 4000:01:00 | ||
| Repetition frequency | 50/60Hz | ||
| Refresh frequency | ≥600Hz | ||
| Gray scale | 14bit | ||
| Ave. power | 275W/㎡ | 250W/㎡ | 300W/㎡ |
| Max power | 550W/㎡ | 450W/㎡ | 600W/㎡ |
| Working temp./humidity | -20~45℃/10%~80%RH | ||
| Storing temp./humidity | -30~60℃/10%~85%RH | ||
| Protection | IP31 | ||
| Driving mode | Constant current driver | ||
| Scanning | 1/10 | 1/7 | 1/8 |
| Power requirements | AC90~264V, 47~63Hz | ||
| Life time | 100,000hrs | ||
| Data input | RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION, etc | ||
| Module material | Flexible PCB + hard board(FPC+FR-4) | ||
| Certificate | CCC/TUV-CE/ETL/RoHS/FCC, etc. | ||
