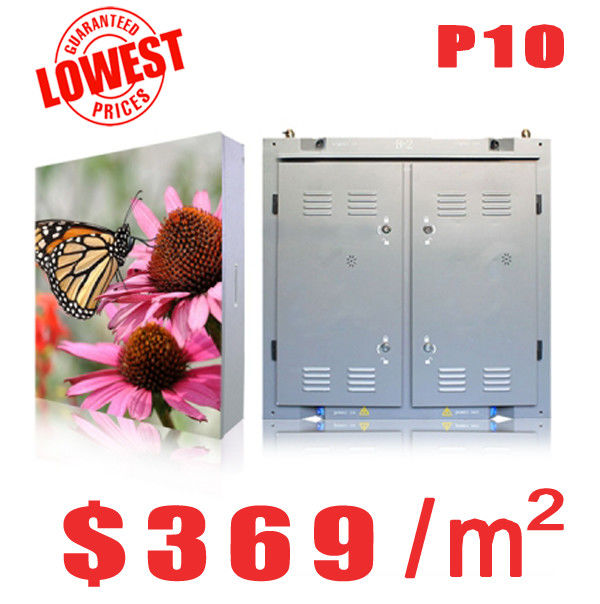

P10 Outdoor Fixed LED Display Screen Hotselling
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | muenled |
| Certification: | CE, RoHS |
| Model Number: | p10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10SQM |
|---|---|
| Price: | $369 |
| Packaging Details: | wooden cases |
| Delivery Time: | 7-15DAYS |
| Supply Ability: | 999SQM |
|
Detail Information |
|||
| PHONE: | +86 13510945503 | E-MAIL: | Mike@mlxled.com |
|---|---|---|---|
| NAME: | P10 Outdoor Fixed LED Display | Model NO.: | MUENLED-P10-OF |
| IP Rating: | IP65 | Pixel Configuration: | 1R, 1G, 1B |
| Average Power Consumption: | 350W / M² | Scanning Mode: | Static Scan |
| Trademark: | MUEN-SIGN | Origin: | Shenzhen, China |
| Tube Chip Color: | Full Color | Pixel Pitch: | 10mm |
| Display Function: | Video Display | Pixel Density: | 10000 Dot / M² |
| Certification: | CE, RoHS | Specification: | CE, ROHS, ISO9001 |
| HS Code: | 8528591090 | ||
Product Description
 |
|
|
|
|
|
Basic Info
- Model NO.: MUENLED-P10-OF
- IP Rating: IP65
- Pixel Configuration: 1R, 1G, 1B
- Average Power Consumption: 350W / m²
- Scanning Mode: Static Scan
- Trademark: MUEN-SIGN
- Origin: Shenzhen, China
- Tube Chip Color: Full Color
- Pixel Pitch: 10mm
- Display Function: Video Display
- Pixel Density: 10000 dot / m²
- Certification: CE, RoHS
- Specification: CE, ROHS, ISO9001
- HS Code: 8528591090
Product Description
Key Benefits
1.Broad viewing angle;
2.Frame-free installation;
3.Front and rear side maintenance.
4.High brightness, visible even with direct sunshine;
5.High water proof and dust proof, IP65 both front and rear side
6.Having good lightening accordance and no mosaic;
7.Having large viewing angle:Getting vivid effect within any position of the viewing range;
8.Any LED in died pixel can be respectively repaired, which reduce the cost of the display maintenance.
LED DISPLAY, LED STADIUM SCREEN, LED OUTDOOR SCREEN, OUTDOOR BILLBOARD
1.Broad viewing angle;
2.Frame-free installation;
3.Front and rear side maintenance.
4.High brightness, visible even with direct sunshine;
5.High water proof and dust proof, IP65 both front and rear side
6.Having good lightening accordance and no mosaic;
7.Having large viewing angle:Getting vivid effect within any position of the viewing range;
8.Any LED in died pixel can be respectively repaired, which reduce the cost of the display maintenance.
LED DISPLAY, LED STADIUM SCREEN, LED OUTDOOR SCREEN, OUTDOOR BILLBOARD
| Model | PH10 |
| Pixel Pitch | 10mm |
| Unit Size | 960mm x 960mm |
| LED Type | 1R1G1B |
| Pixel / Unit | 96x96 |
| Unit Weight | 68kg |
| Viewing Angle | H140° V70° |
| Application | Storage-40~60° C, Working-20~50° C |
| Protection Level | IP65 |
| Power Consumption | 400W/panel Max |
| 200W/Panel Ave. | |
| Driving | 1/4 |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | 1, 200~4, 000Hz |
| Processing | 16bit |
| Max Brightness | 5, 500-6, 500nits |
| Power Supply | AC90-240V, 50~60Hz |
| MTBF | ≥ 1, 000 Hours |
| Life Span | ≥ 50, 000 Hours |
| Pixel Failure | < 0.0003 |
