MUENLED 4X2 LED Advertising Truck/LED Screen Truck
Product Details:
| Place of Origin: | china |
| Brand Name: | muenled |
| Certification: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | PH10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | US$ 1550 |
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 10000PCS |
|
Detail Information |
Product Description

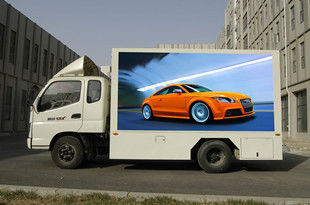

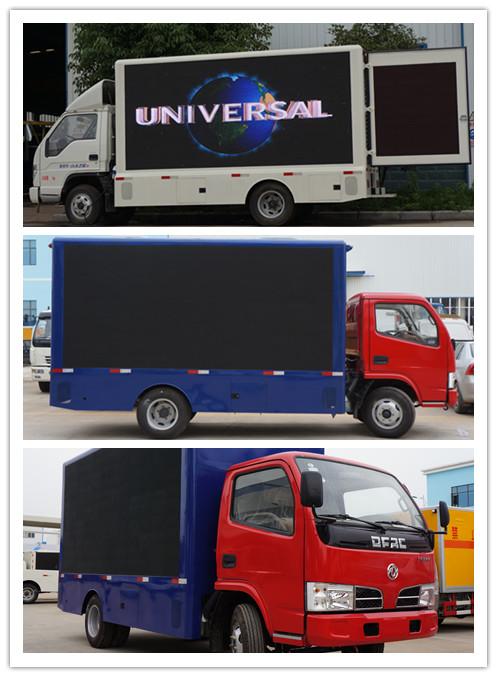

Description of MUENLED 4X2 LED Advertising Truck
1.The specification of our LED panel is P10 , full color, high brightness, stable performance and impact resistance.
2.Three-dimensional images lifelike, clear picture move feeling, and it is equipped with optical control system , it can adjust the brightness of the screen according to the outdoor light.
3.Easy moving , can change location and information at any time without installation and disassembly process.
Parameters
| Cabin |
Driving type 4x2 RHD |
|
| 1880 cab, with A/C ,with two seats, 70°hydraulically tillable to the front | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 6000×2300×3100 |
| Wheel base (mm) | 3360 | |
| Wheel track (front/rear) (mm) | 1605/1540 | |
| Approach/Departure angle(°) | 20/13 | |
| Weight in KGS | Tare Weight | 3200 |
| payload | 5000 | |
| Front axles loading capacity | 1x3000 | |
| Rear axles loading capacity | 1x5200 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Brand | Yunnei Power |
| Model | YN4102 | |
| Horse Power(HP) | 116HP | |
| Emission standard | Euro III | |
| Gearbox | WLY6T46 , 6 forwards & 1 reverse | |
| Steering | Right hand driven | |
| Fuel tank | 200 L | |
| Tire | 7.00R16 radial steel tires with one spare | |
| LED Advertising Screen System |
1.Right and left side P10 LED outdoor full colour display screen, size 3840mm*1760mm for each display screen. Can be liftable.2.Rear LED monochrome screen,size 1280mm *1440 mm3. Internal and external electrical distribution box4. Circulating ventilation and cooling systems5.Omar Silent diesel generator set6.One set industrial computer with control system,sound system7.Waterproof box 2pcs, amplifier 1pc, Control Panel 1pc.8.With built-in stage |
|

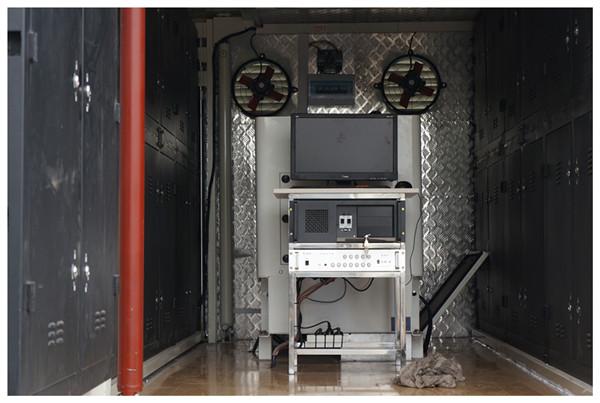

Inner control system
Our company information:
ChengLi special automobile co.,LTD is specilized in All kinds of Tank truck, Dump truck, Crane truck,mixer truck,bulk cement truck as well as many kinds of semi trailers. Our yearly production ability is 20000 units, our water truck ranks No.1 in China market.
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
FAQ
Payment:
30% deposit by T/T after order confirmation, 70% balance should be paid before delivery by T/T or L/C.Other type of payment can be discussed.
Packaging & Shipping:
1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving deposit.
3. By RORO or Bulk ship.
Delivery time:
25 working days after payment is received.
Our warranty:
1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare parts could be supplied by OEM at cost prices.
3.Our engineers are always ready to deal with technical problem.
If you are interested in our trucks, pls feel free to contact with me,I will give you our competitive qutation.
