Lumen C-Power 5200 Fullcolor Async LED Control Card
Product Details:
| Place of Origin: | china |
| Brand Name: | muenled |
| Certification: | CCC,FCC,ISO,9001,ROHS,CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3PCS |
|---|---|
| Price: | US$ 95 |
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 100PCS |
|
Detail Information |
Product Description
- Model: LCC-LUMEN-C-Power5200
- Shipping Weight: 0.5kg
- 149 Units in Stock
- Manufactured by: Lumen

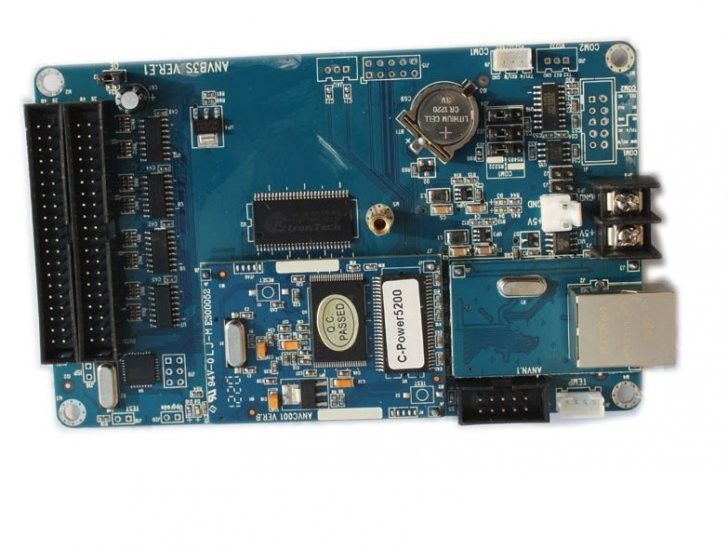

Lumen C-Power 5200 Fullcolor Async LED Control Card
C-Power5200 is the new generation control system for advanced full-color gray-scale graph led screen, which is released by Shenzhen Lumen Electronics Co. Ltd.
【Feature and Specification】
|
Control size
(full , mono/RG color)
|
C-Power 5200 65,536 pixels, 256-grade gray scales
Self adjustment the size,such as 1024*64 / 768*80 / 512*128 / 256*256
|
|
Memory
|
Totol size: 256MByte(2GMbit)
Program size: 128MByte
Font library space: 128MByte
|
|
Program |
All programs are transmitted by compression package, and then decompressed on control card. Supports AVI video program NEW!
Supports animation(swf,gif) , picture, text, clock, temperature, etc. With multi-program mode. Stores up to 512 programs to the Led screen. With hierarchical management of programs in menu type so as to keep clear structure and convenient maintenance. Supports programs played at the appointed period (for example: week, hour, minute ) |
|
Separate window mode |
Supports the segmentation of up to ten playing windows for each program. Supports playing the content in different formats for each playing window. |
|
Affiliated features |
With real-time clock (RTC) management and setting, support digital and analogue clock. Supports environmental data programs like temperature, etc. Supports sensors installed externally (32-grade brightness) |
| Font library |
128MB font library space The card can be stored different fond library and can be changed free, such as English, Chinese (simplified or traditional), Japanese, Korean and etc., |
|
Standard software |
LedCenter V3.53 or above
LedCenterV3.54 or above (to support video)
|
|
Standard communication mode |
RS232/RS485 : maximum baud rate: 115200 |
|
InDa remote & keyboard
|
Program list edit and display control by infrared controller or keyboard |
|
External communication components |
Supports various wireless communication modes: GPRS/CDMA, ZigBee, RF... |
|
Others |
Provides customized development interface and its manual. Provides demonstration program and source code for customized development Besides, provides “Wireless information issue” version. |
