Lumen C-Power 2200 LED Control Card
Product Details:
| Place of Origin: | china |
| Brand Name: | muenled |
| Certification: | CCC,FCC,ISO,9001,ROHS,CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3PCS |
|---|---|
| Price: | US$ 128 |
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 100PCS |
|
Detail Information |
Product Description
- Model: LCC-LUMEN-C-Power2200
- Shipping Weight: 0.25kg
- 256 Units in Stock
- Manufactured by: Lumen

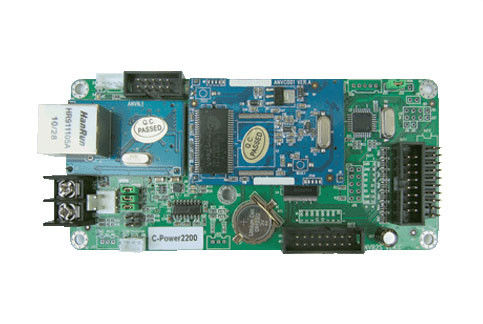

Lumen C-Power 2200 LED Control Card
【Product Introduction】
C-Power2200is a member of C-Power new platform family. It's the compact product of the C-Power3200 which is the advance animation controller released by Shenzhen Lumen Electronics Co. Ltd.
C-Power2200 and other C-Power family prodcuts sharing the same CPU platform, and has the same computing power as C-Power5200/4200/3200, All of C-Power family products have the same perfect second development interface and control protocol.
Compared with C-Power3200, C-Power2200 cut the size of memory, slightly reduce the display size; but the functions,effects and program types are exactly the same.
|
Control size
(mono/RG color)
|
16,384 pixels
Self adjustment the size,such as 256*64, 512*32, 1024*16
|
|
Memory
|
Totol size: 2MByte(16Mbit)
Program size: 1.5MByte
Font library space: 512KByte
|
|
Program |
All programs are transmitted by compression package, and then decompressed on control card.
Supports animation(swf,gif) , picture, text, clock, temperature, etc.
Text program edit in any language, any font and any size, free adjust Transparent text and clock program can be edit to cover photo More than 60 effects for text and picture, such as: snow fall, mosaic, slide zebra, fan open and etc.,
With multi-program mode. Stores up to 512 programs to the Led screen.
With hierarchical management of programs in menu type so as to keep clear structure and convenient maintenance.
Supports programs played at the appointed period (for example: week, hour, minute )
|
|
Separate window mode
|
Supports the segmentation of up to ten playing windows for each program. Supports playing the content in different formats for each playing window.
|
|
Affiliated features
|
With real-time clock (RTC) management and setting, support digital and analogue clock.
Supports environmental data programs like temperature, etc.
Supports sensors installed externally (32-grade brightness)
|
|
Font library |
The card can be stored different fond library and can be changed free, such as English, Chinese (simplified or traditional), Japanese, Korean and etc.,
|
|
Standard software
|
LedCenterV4.0.0 or above
|
|
Standard communication mode
|
RS232/RS485 : maximum baud rate: 115200 |
|
InDa remote & keyboard
|
Program list edit and display control by infrared controller or keyboard |
|
External communication components
|
Supports various wireless communication modes: WIFI, GPRS, ZigBee, RF...
|
|
Others
|
Provides customized development interface and its manual, the interface is same to C-Power5200
Provides demonstration program and source code forcustomized development
|
