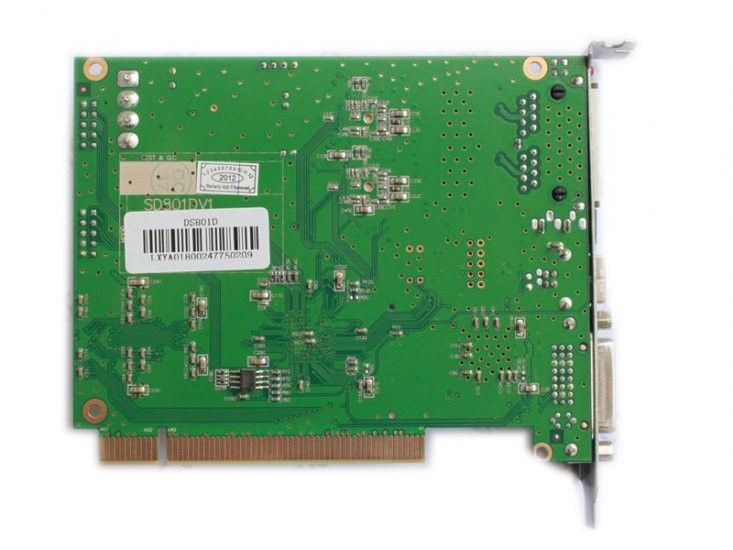

Linsn DS801 LED Sending Card for Double Color LED Display

DS801 LED Sending Card/DS801 LED Sender (Single/Double color)

DS801 is for Single Color and Double Color Only,  If you want Fullcolor, please choose: TS802 sending card

Function:DS801 single/double color led  receiver Receiving signals from computer then fedding to receiving card/receiver/scan board.

Specification:
5V, 2A
Can put inside the PC by PCI slot, or put outside the PC by adding a 5V power supply.
One card can max support 1280(width)*1024(height) pixels (with U and D outputs).
DS801 is double-color sender, can control real pixel, virtual pixel, double colorand single color.

To support a control send a card with multiple screens can be any combination of the working status of the multi-block-screen synchronized display, independent play, etc. through shortcut keys to quickly switch.
256 automatically adjust the brightness
256 automatic brightness adjustment feature lets you display brightness adjustment is more effective.
Program online upgrade feature
If the display card receiving procedures need to upgrade, simply open the power of large screen LED Studio can upgrade process, do not need to receive the card demolition away from the big screen can be upgraded.
To break through the traditional concept of the DIP switch
DIP switch design, all settings are set via the computer.
Test function
Receiver card integration test, then do not send cards to test the display, slash, gray, red, green, blue, full brightness, etc. a variety of test mode.
