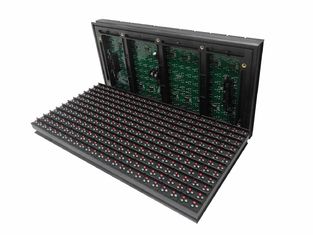

MUENLED-PH13.33 Head Door Advertising LED Display
Product Details:
| Place of Origin: | china |
| Brand Name: | muenled |
| Certification: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | PH13.33 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | US$ 584 |
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 10000PCS |
|
Detail Information |
|||
| Usage: | Outdoor | Tube Chip Color: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels: | 13.33 |
Product Description

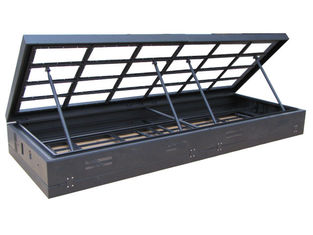

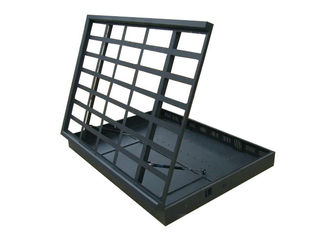

Head door Advertising display mainly use in store, enterprise units, Display vividly colorful picture, play video to catch more customer eyes. And this led display key feature is saving energy, high brightness, single and double side front service structure, led display with electric leakage protection, current surge, over-current protection, led display without noise of continuous working 24 hours a day.
|
Parameters |
PH13.33 Outdoor DIP series |
|
Pixel Pitch |
13.33mm |
| Pixel Density |
5626Dots/m² |
| Pixel Configuration |
1R1G1B |
| LED Standard |
DIP346 |

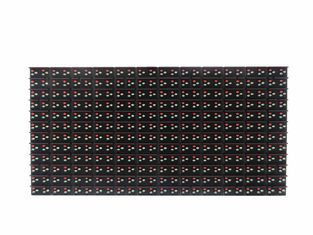

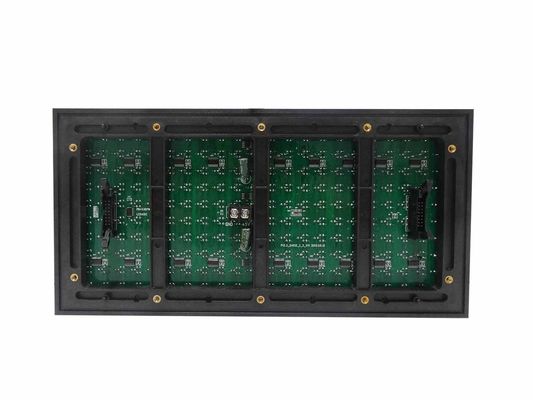

| Mosule Size |
320*160mm |
| Module Weight |
0.75kg |
|
Brightness |
≥6500cd/m² |
|
Displays colors |
10.7Million color |
|
Protection Level |
IP65 |
|
Control Mode |
Synchronous/Asynchronous |
| Driving Method |
Constant Current 1/4scan |
|
Refresh Rate |
1000Hz |
|
Viewing Angle (H/V) |
H:110° V:55° |
|
The optimal viewing distance |
13.33-150mm |
|
Consumption |
Max.consumption 700w/m² Average.consumption 280w/m² |
|
LED Lamp Parameters |
(R) γ d:(625-628nm) IV:(1000mcd) (G) γ d:(523-525nm) IV:(2200mcd) (B) γ d:(470-472nm) IV:(500mcd) |
|
Comunication Type |
3G WIFI Cats ≤ 100m Multimode optical fiber ≤ 500m Single Mode optical fiber ≤ 1500m |
| The above content is for reference | |
