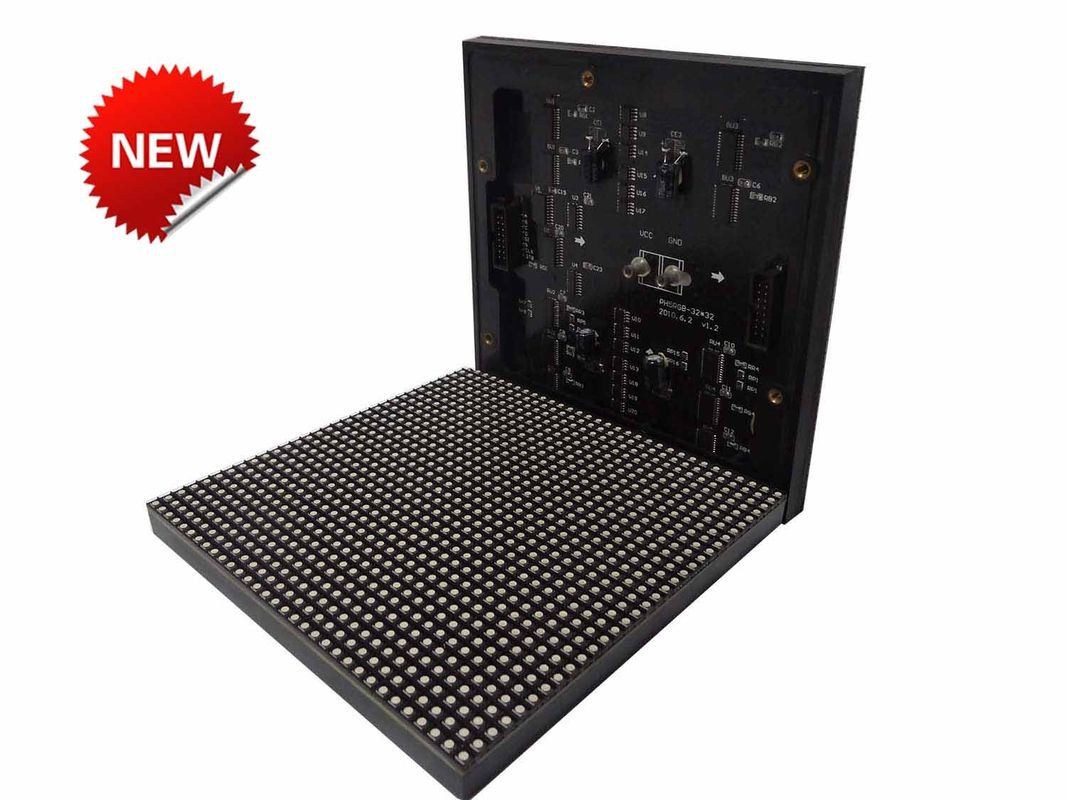

Indoor ph5mm 32X32dots 160x160mm smd led display module
Product Details:
| Place of Origin: | china |
| Brand Name: | muenled |
| Certification: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | PH5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3PCS |
|---|---|
| Price: | US$ 10 |
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 100PCS |
|
Detail Information |
|||
| Usage: | Indoor | Tube Chip Color: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels: | 5mm |
Product Description
- Model: LCC-Ph5-I/F/T
- Shipping Weight: 0.5kg
- 1143 Units in Stock
- Manufactured by: Indoor LED Module
Ph5mm Indoor SMD LED Display Module,Ph5mm HD led video sign module
Provide the Config Files and settings for free! including Linsn RCG files,CON files or Novastar,Colorlight,Xixun Wireless Technical Support Online!
Size:160mmx160mm, Resolution:32x32dots, including DATA and Power Cable, Epistar LED,2 Years Warranty.
MUENLED Suggestion:
You can buy the indoor led module,led control card, led display parts and other led display accessories from MUENLED, and then assemble them into a complete indoor LED display at your workshop. In this way, you can not only save the expensive import tax for the led display screen, but also provide your customers with the local-made smd led display,which are easily accepted by local customer who do not believe the made-in-china led video wall.
MUENLED Terms:
Delivery time: within 2 working days after received the payment.
Payment terms: Paypal/Western Union or Wire Transfer 100% before shipment.
Packaging: strong cardboard carton.
Warranty: 2 Years Warranty.
Shipping method: Ship the indoor led module by DHL, UPS, Fedex and EMS.
|
Resolution |
32(H)×32(V) |
|
Pitch |
5mm |
|
Density |
40000 pixels/㎡ |
|
LED Arrangement |
1R1G1B |
|
Driver Mode |
Dynamic 1/16 Duty constant current |
|
Size |
160 mm×160 mm |
|
Mask |
Pure Black mask-high contrast screen |
|
Electricity Parameter |
|
|
Optical Ratings |
|
|
Brightness |
≥1500cd/㎡ |
|
View Angle |
140 degree ( horizontal) 140degree(vertical) |
|
View Distance |
3m-50m |
|
Gray Scale |
8bits input, correction with 14bits |
|
Display Color |
16.7M |
|
Brightness Adjustment |
100 levels |
|
Power Supply |
|
|
Operation Power |
AC100-240V 50-60HZ Switch-able |
|
Maxim Power Consumption |
1200 W/m2 |
|
Average Power Consumption |
650 W/m2 |
|
Control System |
|
|
Correction Scale Level |
16bits |
|
Frame Update Frequency |
60Hz |
|
Screen Refresh Frequency |
480Hz |
|
Gamma Correction |
-5.0—5.0 |
|
Support Input |
Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
|
Control Distance |
Ethernet cable 100m, optical fiber 5km |
|
Support VGA Mode |
800×600,1024×768,1280×1024,1600×1200 |
|
Color Temperature |
5000-9300 adjustable |
|
Brightness Correction |
dot by dot, module by module, cabinet by cabinet |
|
Reliability |
|
|
Operating Temp. |
-20-60 Celsius degree |
|
Operating Humidity |
10-95% RH |
|
Operating Life |
100,000 hours |
|
MTBF |
5000 hours |
|
Continuous Working Time |
≥48 hours |
|
Protection Level |
IP54 |
|
Out of Control Pixel Rate |
0.01% |
