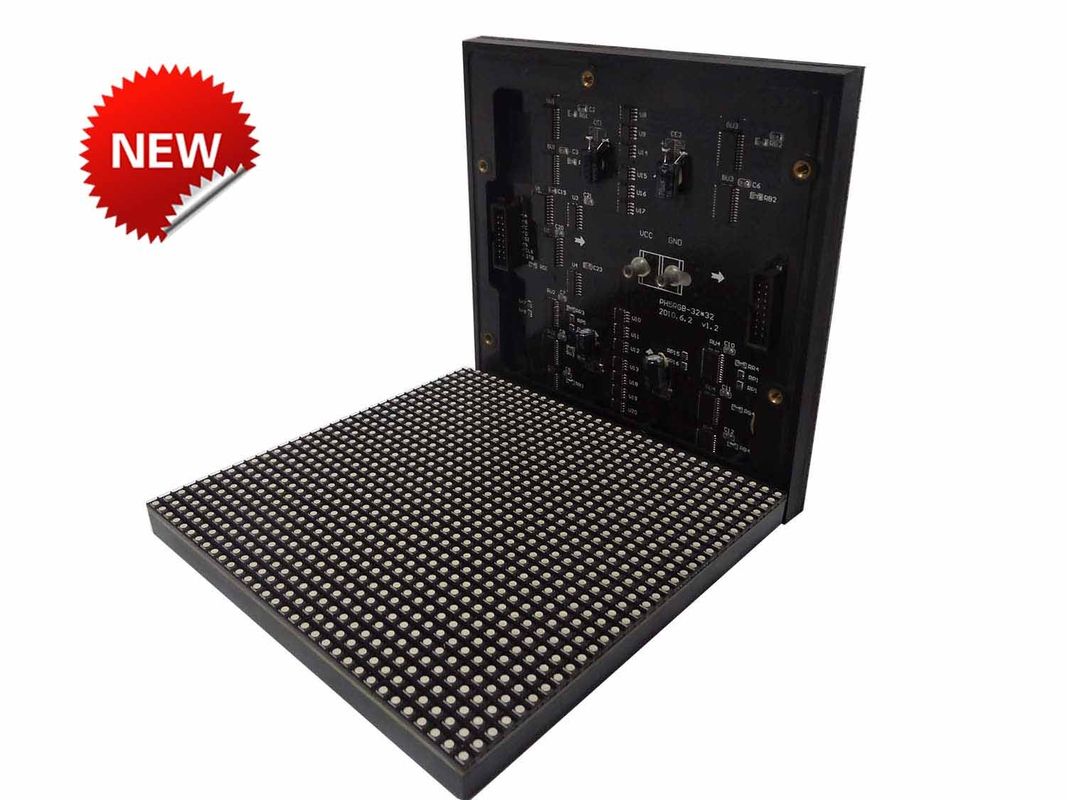

Indoor P2.5mm 128x128dots 320mmx320mm LED Display Module
Product Details:
| Place of Origin: | china |
| Brand Name: | muenled |
| Certification: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | PH2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3PCS |
|---|---|
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 10000PCS |
|
Detail Information |
|||
| Usage: | Indoor | Tube Chip Color: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels: | 2.5mm |
Product Description
- Model: LCC-Indoor-P2.5-128X128
- Shipping Weight: 2.1kg
- 80 Units in Stock
- Manufactured by: Indoor LED Module
Indoor P2.5mm 128x128dots 320mmx320mm LED Display Module,High Resolution LED Video Wall
Remark: High Refresh Rate, High Grey Grade,High Efficiency,NO Mosaic. including the Power and DATA cable, Epistar LED,2 years warranty.
Ph2.5mm HD LED Video Wall Specifications:
|
Technical Prameters |
|
|
Pixel pitch |
2.5mm |
|
Pixel density |
160000 Pixels/sqm |
|
Module size(W*H) |
320 (mm)W*320 (mm)H |
|
Module pixels(W*H) |
128 Pixels(W)*128 Pixels(H) |
|
Pixel configuration |
1Red 1Green 1Blue |
|
Drive mode |
constant current driving 1/16 scan |
|
LED lamp type |
SMD2121 (black body) |
|
Cabinet resolution |
160 Pixels(W) |
|
Color scale |
65,536 degree |
|
View angle(H/V) |
140/140 degree |
|
Brightness (White balance) |
≥1500cd/sqm. |
|
Power consumption(one cabinet) |
Max:1000W/sqm. Average:350W/sqm. |
|
Operating Voltage |
AC100V±10% or 220V ±10%; 50---60HZ |
|
Operating temperature |
-20°C----+50°C (Customized power supply:-45°C---+60°C) |
|
Operating humidity |
10%_95%RH |
|
Life time |
≥100,000hours |
|
MTBF |
5,000 hours |
|
Whole Display Flatness |
≤0.3mm Juncture |
|
Frame frequency |
>60 Hz/s |
|
Refresh rate |
≥1200Hz /s |
|
Control distance |
100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
|
LED control system |
LINSN,Dbstar,Novastar,ZDEC,Colorlight is selectable |
|
Operating system |
Windows 2000 / Windows Xp / Windows 7 |
|
Protections for outdoor display |
IP31 |
|
Maintenance way |
Rear Access |
|
Accepting signal with video processor |
PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
Ph2.5mm Indoor LED Module Features:
1. Ph2.5mm smd led module use SMD2121 black body LED, can get very high contrast rate: 9000: 1 with best color uniformity.
2. High resolution, Up to Pitch 2.5mm. 160000pixels in 1 square meter. With high density, it is able to produce high quality graphic & video.
3. Large viewing angle, Up to 140° (Horizontal & Vertical).
4. Work with Novastar and linsn led control system, guarantee very high refresh rate, no scaning line when taked photos or videos.
5.MUENLED smd led display takes with fast heating spread, to protect screen effectively and increase the use life largely.
6. ENBON P2.5 LED screen is designed as slim body & light weight, Easy maintenance.
7. This display can show all kinds of word, text, graph, pictures, flashes, video, 2-dimension, 3-dimension cartoon and any other formats synchronously with PC.
8. Different signal resources input are acceptable, such as TV, HCTV, S-video, NTSC/PAL, DVI, AVI, VGA, SDI, MOV, MPG, etc.Technical Prameters
9.Signal & power aviation connectors are water & dust proof, stable and reliable.
10.Cushion under the cabinet can protect the modules from being damaged.
11.Good color and brightness conformity. The LED chip is sorted by 2.5mm, while the chip brightness difference is within 10%.
MUENLED Factory Stock
MUENLED usually keep 2000 pcs of outdoor led module for each model in stock for sale. we can ship the led display module to your customers by express within 5 days after received the payment.then your customer will enjoy the fast delivery!
MUENLED Terms:
Delivery time: within 7 working days after received the payment.
Payment terms: Paypal/Western Union or Wire Transfer 100% before shipment.
Packaging: strong cardboard carton.
Warranty: 2 Years Warranty.
Shipping method: Ship the outdoor led module by DHL, UPS, Fedex and EMS.
Shipping cost: We will check the best shipping cost for you after you tell us the quantity and shipping address.
MUENLED Provide the 2 Years Warranty for indoor led display module, all indoor led module with high quality control production. each led pixels has been tested for 72 hours. it has best color uniformity and colors. indoor led sign module widely used for high resolution led display to show the HD videos. the normal led brightness is 1500-2500 nits (cd/m2).if you are looking for high quality in stock indoor smd led module. please contact MUENLED.
