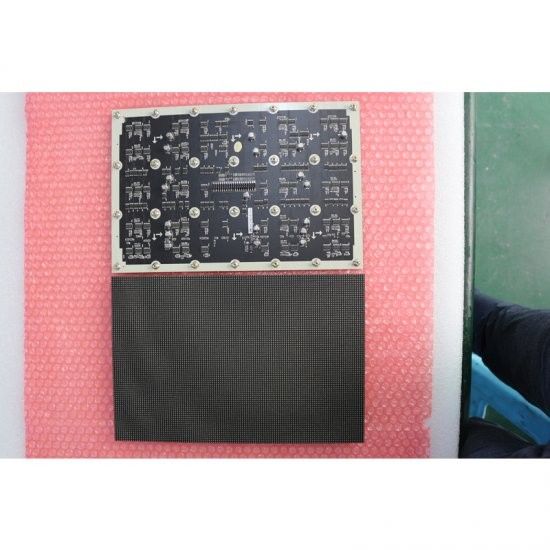

Indoor Die Casting P2.5mm LED Module 80x120dots 200mmx300mm
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MUENLED |
| Certification: | CE.ROSH.FCC.UL.ISO9001 |
| Model Number: | P2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | flijht case |
| Delivery Time: | 7 days |
| Payment Terms: | T/T;P/L |
| Supply Ability: | 10000PCS |
|
Detail Information |
|||
| Usage: | Indoor | Tube Chip Color: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels: | 2.5MM |
Product Description
- Model: LCC-Indoor-P2.5-80x120
- Shipping Weight: 1.5kg
- 252 Units in Stock
- Manufactured by: Indoor LED Module
Indoor Die Casting P2.5mm LED Module 80x120dots 200mmx300mm High Resolution LED Video Wall
Remark: High Refresh Rate, High Grey Grade,High Efficiency,NO Mosaic. including the Power and DATA cable, Epistar LED,2 years warranty.
P2.5mm Die Casting Aluminum LED Module Specification:
1) LED Package: SMD1010
2) Pixel Pitch: 2.5mm
3) Pixel Configuration: 1R1G1B
4) Density: 160000 pixels/㎡
5) Module Size:200*300mm
6) Cabinet Size: 400*300mm
7) Cabinet Material: Die-cast aluminum
8) Cabinet Weight: ≈5.5KG
9) Brightness: ≥1200cd/㎡
10) Viewing Angle: 120°(Horizontal); 120°(Vertical)
11) Driving Mode: Constant current, 1/30 duty
12) Refresh Frequency: ≥900Hz
13) Max. Power Consumption: 2000W/㎡
14) Working Temperature: -20°C～+60°C
15) Life Time: more than 100,000 hours
Ph2.5mm Aluminum LED Module Features:
1. Ph2.5mm smd led module use SMD1010 black body LED, can get very high contrast rate: 9000: 1 with best color uniformity.
2. High resolution, Up to Pitch 2.5mm. 160000pixels in 1 square meter. With high density, it is able to produce high quality graphic & video.
3. Large viewing angle, Up to 140° (Horizontal & Vertical).
4. Work with Novastar and linsn led control system, guarantee very high refresh rate, no scaning line when taked photos or videos.
5. MUENLED smd led display takes with fast heating spread, to protect screen effectively and increase the use life largely.
6. ENBON P2.5 LED screen is designed as slim body & light weight, Easy maintenance.
7. This display can show all kinds of word, text, graph, pictures, flashes, video, 2-dimension, 3-dimension cartoon and any other formats synchronously with PC.
8. Different signal resources input are acceptable, such as TV, HCTV, S-video, NTSC/PAL, DVI, AVI, VGA, SDI, MOV, MPG, etc.Technical Prameters
9.Signal & power aviation connectors are water & dust proof, stable and reliable.
10.Cushion under the cabinet can protect the modules from being damaged.
11.Good color and brightness conformity. The LED chip is sorted by 2.5mm, while the chip brightness difference is within 10%.
