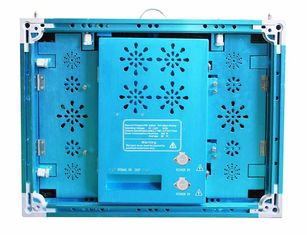

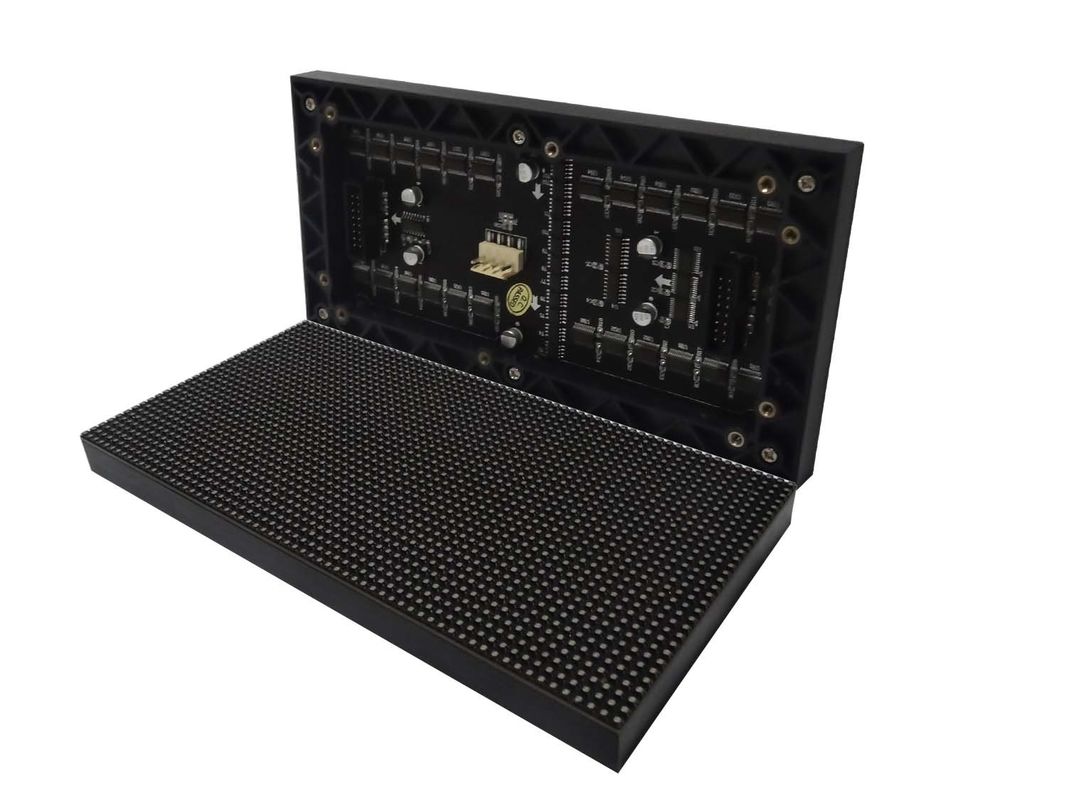

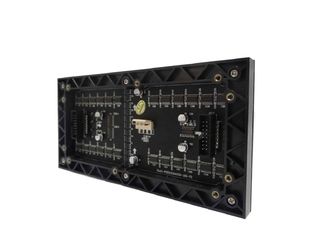

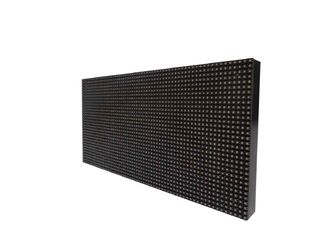

MUENLED-PH4 Indoor SMD led Diplay Module
Product Details:
| Place of Origin: | china |
| Brand Name: | muenled |
| Certification: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | PH4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | US$ 17 |
| Packaging Details: | flijht case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 10000PCS |
|
Detail Information |
Product Description
Inquire for the Price and Solution >>> Latest offer
|
Parameters |
PH4 Indoor SMD series |
|
Pixel Pitch |
4mm |
| Pixel Density |
62500 Dots/m² |
| Pixel Configuration |
3 in 1 |
| LED Standard |
SMD2020 |
| Module Size |
256*128mm |
| Module Resolution |
2048(Dots) |
| Module Weight |
0.1kg |
|
Brightness |
≥2000cd/m² |
|
Displays colors |
10.7Million color |
|
Protection Level |
IP 43 |
|
Control Mode |
Synchronous/Asynchronous |
| Driving Method |
Constant driving 1/16 scan |
|
Refresh Rate |
800Hz |
|
Viewing Angle (H/V) |
H:120° V:120° |
|
The optimal viewing distance |
4-100m |
|
Consumption |
Max.consumption 800w/m² Average.consumption 250w/m² |
|
LED Lamp Parameters |
(R) γ d:(625-628nm) IV:(600mcd) (G) γ d:(523-525nm) IV:(1200mcd) (B) γ d:(470-472nm) IV:(350mcd) |
|
Comunication Type |
3G WIFI Cats ≤ 100m Multimode optical fiber ≤ 500m Single Mode optical fiber ≤
|
|
