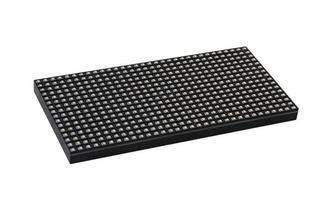

Ph10mm RGB 3in1 Outdoor LED Module 320mmx160mm
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MUENLED |
| Certification: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | PH10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | T/T;P/L |
| Supply Ability: | 10000PCS |
|
Detail Information |
|||
| Usage: | Outdoor | Tube Chip Color: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels: | 10mm |
Product Description
- Model: LCC-Ph10-O/F/I
- Shipping Weight: 1.2kg
- 1173 Units in Stock
- Manufactured by: Outdoor LED Module
Ph10mm RGB 3in1 Outdoor LED Module 320mmx160mm LED Module Signs
Size:320mmx160mm, Resolution:32x16dots, including DATA and Power Cable, Epistar LED,2 Years Warranty.
|
LED |
|||||
|
Color |
Package |
Intensity |
View Angle |
Wavelength |
Test Enviro |
|
Red |
3mm Oval |
550-650mcd |
110/70 |
625nm |
25℃,20mA |
|
Green |
3mm Oval |
1800mcd |
110/70 |
520nm |
25℃,20mA |
|
Blue |
3mm Oval |
350-450mcd |
110/70 |
467nm |
25℃,20mA |
|
Resolution |
32(H)×16(V) |
|
Pitch |
10mm |
|
Density |
10000 pixels/㎡(real density) |
|
LED Arrangement |
1R1G1B |
|
Driver Mode |
Dynamic 1/4 Duty constant current |
|
Size |
320mm×160mm |
|
Mask |
Pure Black mask-high contrast screen |
|
Electricity Parameter |
|
|
Optical Ratings |
|
|
Brightness |
≥6800cd/㎡ |
|
View Angle |
110 degree ( horizontal) 70 degree(vertical) |
|
Best View Distance |
6m-100m |
|
Gray Scale |
8bits input, correction with 14bits |
|
Display Color |
16.7M |
|
Brightness Adjustment |
100 levels |
|
Power Supply |
|
|
Operation Power |
AC100-240V 50-60HZ Switch-able |
|
Maxim Power Consumption |
800W/m2 |
|
Average Power Consumption |
500W/m2 |
|
Control System |
|
|
Correction Scale Level |
16bits |
|
Frame Update Frequency |
60-80Hz |
|
Screen Refresh Frequency |
480Hz |
|
Gamma Correction |
-5.0—5.0 |
|
Support Input |
Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
|
Control Distance |
Ethernet cable 100m, optical fiber 5km |
|
Support VGA Mode |
800×600,1024×768,1280×1024,1600×1200 |
|
Color Temperature |
5000-9300 adjustable |
|
Brightness Correction |
dot by dot, module by module, cabinet by cabinet |
|
Reliability |
|
|
Operating Temp. |
-20-60 Celsius degree |
|
Operating Humidity |
10-95% RH |
|
Operating Life |
100,000 hours |
|
MTBF |
5000 hours |
|
Continuous Working Time |
≥48 hours |
|
Protection Level |
IP65 |
|
Out of Control Pixel Rate |
0.01% |
