Latest Outdoor P8mm 1/4Scan 32x16dots 256mmx128mm SMD LED Module
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MUENLED |
| Certification: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | PH8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 10000PCS |
|
Detail Information |
|||
| Usage: | Outdoor | Tube Chip Color: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels: | 8mm |
Product Description
- Model: LCC-MUENLED-P8-O-32X16
- Shipping Weight: 0.95kg
- 1784 Units in Stock
- Manufactured by: RGBlink
Latest Outdoor P8mm 32x16dots 256mmx128mm SMD LED Display Module
Remark:
1. IP65 SMD Outdoor LED Module Including the Data & Power Cables, Waterproof Rubber Ring.
2. Epistar LEDs, 2 Years Warranty, Ship in 24 hours,Free Online Support.
3. LED Module Can Work With Linsn,Novastar,Colorlight,Xixun LED Conrol Card Etc.
|
Model |
MUENLED-P8-O-32X16 |
|||||||
|
1.LED |
||||||||
 |
||||||||
|
Color |
Package |
Intensity |
View Angle |
Wavelength |
Test Cond. |
|||
|
Red |
SMD 3535 |
750mcd |
140/140 |
620nm |
25℃,20mA |
|||
|
Green |
SMD 3535 |
2100mcd |
140/140 |
520nm |
25℃,20mA |
|||
|
Blue |
SMD 3535 |
530mcd |
140/140 |
470nm |
25℃,20mA |
|||
|
2.LED Module

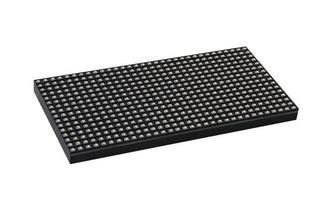

Module Front View
Module Back View |
||||||||
|
Resolution |
32(H)×16(V) |
|||||||
|
Pitch |
8mm |
|||||||
|
Density |
15625 pixels/㎡ |
|||||||
|
LED Arrangement |
SMD3535 |
|||||||
|
Driver Mode |
Dynamic 1/4 Duty constant current |
|||||||
|
Size |
256mm×128mm |
|||||||
|
Mask |
Pure Black mask-high contrast screen |
|||||||
|
3.Electricity Parameter |
||||||||
|
Optical Ratings |
||||||||
|
Brightness |
≥6500cd/㎡ |
|||||||
|
View Angle |
140 degree ( horizontal) 140degree(vertical) |
|||||||
|
View Distance |
8m-80m |
|||||||
|
Gray Scale |
48bits input, correction with 16bits |
|||||||
|
Display Color |
16.7M |
|||||||
|
Brightness Adjustment |
100 levels |
|||||||
|
Power Supply |
||||||||
|
Operation Power |
AC100-240V 50-60HZ Switch-able |
|||||||
|
Maxim Power Consumption |
800 W/m2 |
|||||||
|
Average Power Consumption |
400 W/m2 |
|||||||
|
Control System |
||||||||
|
Correction Scale Level |
16bits |
|||||||
|
Frame Update Frequency |
60Hz |
|||||||
|
Screen Refresh Frequency |
480Hz |
|||||||
|
Gamma Correction |
-5.0—5.0 |
|||||||
|
Support Input |
Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
|||||||
|
Control Distance |
Ethernet cable 100m, optical fiber 5km |
|||||||
|
Support VGA Mode |
800×600,1024×768,1280×1024,1600×1200 |
|||||||
|
Color Temperature |
5000-9300 adjustable |
|||||||
|
Brightness Correction |
dot by dot, module by module, cabinet by cabinet |
|||||||
|
Reliability |
||||||||
|
Operating Temp. |
-20-60 Celsius degree |
|||||||
|
Operating Humidity |
10-95% RH |
|||||||
|
Operating Life |
100,000 hours |
|||||||
|
MTBF |
5000 hours |
|||||||
|
Continuous Working Time |
≥48 hours |
|||||||
|
Protection Level |
IP65 Waterproof Outdoor |
|||||||
|
Out of Control Pixel Rate |
0.01% |
|||||||
Shipping & Payment Terms:
Delivery time: Deliver in 24 hours after received the payment.Payment terms: Paypal/Western Union or Wire Transfer 100% before shipment.
Packaging: Strong Cardboard Carton.
Warranty: 2 Years Warranty.
Shipping method: Ship the led display module by DHL, UPS, Fedex and EMS.
Shipping cost: We will check the best shipping cost for you after you tell us the quantity and shipping address.
