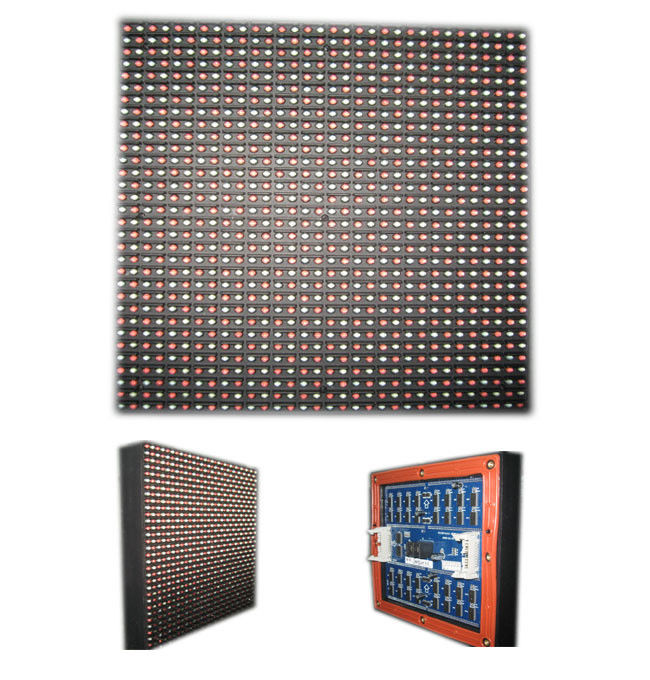

Ph12mm Outdoor LED Module
Product Details:
| Place of Origin: | china |
| Brand Name: | muenled |
| Certification: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | PH12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | US$ 8 |
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 10000PCS |
|
Detail Information |
Product Description
Ph12mm Outdoor LED Module is for outdoor advertsing.with high definition and high brightness and long viewing distance.
| Features: | |
Resolution | 16(H)×16(V) |
Pitch | 12mm |
Density | 6944 pixels/㎡(real density) |
LED Arrangement | 2R1G1B |
Driver Mode | Dynamic 1/4 Duty constant current |
Size | 192mm×192mm |
Mask | Pure Black mask-high contrast screen |
| Warranty | 2 Years Warranty |
Electricity Parameter | |
Brightness | ≥7000cd/㎡ |
View Angle | 110 degree ( horizontal) 70 degree(vertical) |
Best View Distance | 9m-120m |
Gray Scale | 8bits input, correction with 14bits |
Display Color | 16.7M |
Brightness Adjustment | 100 levels |
Control System | |
Correction Scale Level | 16bits |
Frame Update Frequency | 60-80Hz |
Screen Refresh Frequency | 480Hz |
Gamma Correction | -5.0—5.0 |
Support Input | Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
Control Distance | Ethernet cable 100m, optical fiber 5km |
Support VGA Mode | 800×600,1024×768,1280×1024,1600×1200 |
Color Temperature | 5000-9300 adjustable |
Brightness Correction | dot by dot, module by module, cabinet by cabinet |
Reliability | |
Operating Temp. | -20-60 Celsius degree |
Operating Humidity | 10-95% RH |
Operating Life | 100,000 hours |
MTBF | 5000 hours |
Continuous Working Time | ≥48 hours |
Protection Level | IP65 |
Out of Control Pixel Rate | 0.01% |
