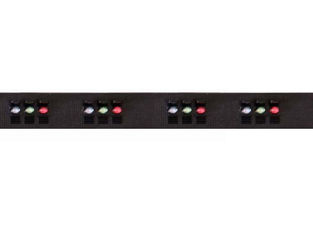

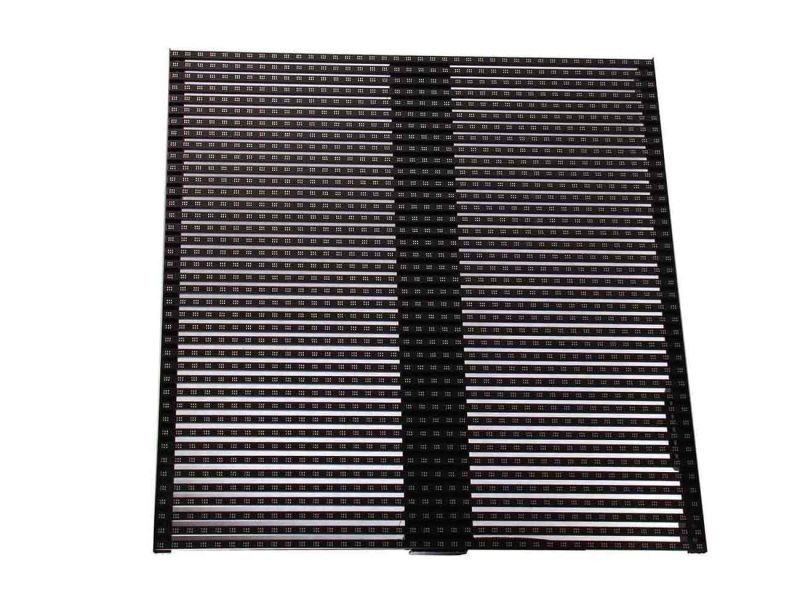

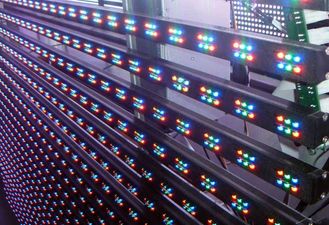

MUENLED-PH30 Outdoor LED Lamp strip screen

Features:
● Light weight -Compared with traditional cabinets, the cabinets for LED strip curtain screen is 60%-80% lighter.This has greatly reduced the load requirement for building and steel structures,most suitable for large size LED display and dynamic Landscape.
● wind resistance-40-50% wind transparency, with a strong ability to resist wind, effectively reduce wind load, further reduce the LED display basic structural strength and weight. transparent rate 40%-50%
● Slim -The whole screen can be fixed on the building only by some simple structures, which ensures the Security of the wall and its foundation.
● Heat elimination-All LED bars were made of aluminum and be fixed separately with other accessories. It is good for cooling.Itself and will not affect the temperature of its control system and power supply.
● Maintain-Front and back maintenance are all available. It can be designed according to the customers' request. No need maintenance access for front maintenance.Control box is not only one part of screen but also one part of steel structure. Elegant power and video wiring solutions. All cables were housed inside the frame.
● High IP rate-With high IP rating of IP65/IP65 ensures effective waterproofing and dust-proofing, it is specially designed for a genuine outdoor installation.

Parameters	PH30  Outdoor DIP series
Pixel Pitch	30 mm
Standard	1200*20mm
Size	1200*1200
Lamp strip points	40*1
Weight	15kg/㎡
Displays colors	10.7Million color
Protection Level	IP 68
Led standard	DIP346
Density	1111dots/sqm
Pixel Configuration	2R2G2B
Control Mode	Synchronization or asynchronous (choosable)
Refresh Rate	≥500Hz
Storage temperature	-40℃ ～ +85℃
Working  temperature	-10℃ ～ +50℃
Viewing Angle (H/V)	H:120°         V:120°
Brightness of white balance	≥7000cd/m2
Voltage supply:	AC100～220V±10％
Consumption	Max.consumption 800w/m²     Average.consumption 250w/m²
LED Lamp Parameters	(R) γ d:(625-628nm) IV:(1000-1200mcd) (G) γ d:(523-525nm) IV:(2000-2500mcd) (B) γ d:(470-472nm) IV:(500-650mcd)
Comunication Type	3G  WIFI  Cats ≤ 100m  Multimode optical fiber ≤ 500m  Single Mode optical fiber ≤ 1500m
The above content is for reference
