Indoor Ph6mm 576mmx576mm LED Display Panel In Stock
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MUENLED |
| Certification: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | PH6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3PCS |
|---|---|
| Price: | US$ 848 |
| Packaging Details: | flijht case |
| Delivery Time: | 7 days |
| Payment Terms: | T/T;P/L |
| Supply Ability: | 100PCS |
|
Detail Information |
|||
| Usage: | Outdoor | Tube Chip Color: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels: | 6mm |
Product Description
-
Model: LCC-P6-I-576x576
-
Shipping Weight: 18kg
-
194 Units in Stock

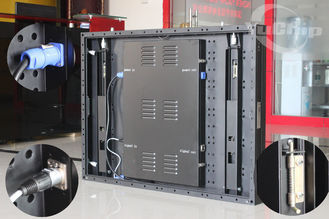

Indoor Ph6mm 576mmx576mm Rental LED Display Panel Cabinet.
200 pcs In Stock for Sale, Delivery in 3 days!
Resolution:96x96dots, including Receiving Card,Power Supply,DATA and Power Cable, Epistar LED,2 Years Warranty.
Wooden Box Packing, If need Flight Case Packing, add USD 135/pc. 1 pcs Flight Case can pack 6 pcs LED Cabinets.
Attention: The price is NOT including the Shipping Cost. Before you order,please contact us to confirm the shipping cost!
LED Module |
||
Resolution |
32(H)×32(V) |
|
Pitch |
6mm |
|
Density |
27778 pixels/㎡ |
|
LED Arrangement |
1R1G1B |
|
Driver Mode |
Dynamic 1/16 Duty constant current |
|
Size |
192 mm×192 mm |
|
Mask |
Pure Black mask-high contrast screen |
|
LED Panel |
||
Resolution |
96(H)×96(V) |
|
Size |
576mm× 576mm |
|
Weight |
14.5KG |
|
Operation Power |
AC100-240V 50-60HZ Switch-able |
|
Maxim Power Consumption |
1000 W/m2 |
|
Average Power Consumption |
500 W/m2 |
|
Electricity Parameter |
||
Optical Ratings |
||
Brightness |
≥1500cd/㎡ |
|
View Angle |
140 degree ( horizontal) 140degree(vertical) |
|
View Distance |
4m-60m |
|
Gray Scale |
8bits input, correction with 14bits |
|
Display Color |
16.7M |
|
Brightness Adjustment |
100 levels |
|
Control System |
||
Correction Scale Level |
16bits |
|
Frame Update Frequency |
60Hz |
|
Screen Refresh Frequency |
480Hz |
|
Gamma Correction |
-5.0—5.0 |
|
Support Input |
Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
|
Control Distance |
Ethernet cable 100m, optical fiber 5km |
|
Support VGA Mode |
800×600,1024×768,1280×1024,1600×1200 |
|
Color Temperature |
5000-9300 adjustable |
|
Brightness Correction |
dot by dot, module by module, cabinet by cabinet |
|
Reliability |
||
Operating Temp. |
-20-60 Celsius degree |
|
Operating Humidity |
10-95% RH |
|
Operating Life |
100,000 hours |
|
MTBF |
5000 hours |
|
Continuous Working Time |
≥48 hours |
|
Protection Level |
IP54 |
|
Out of Control Pixel Rate |
0.01% |
|
