Indoor Full color SMD RGB P2 P3 P3.9 P4 P4.8 P5 P6 P8 P10 led video wall screen
Product Details:
| Place of Origin: | china |
| Brand Name: | muenled |
| Certification: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | P2 P3 P3.9 P4 P4.8 P5 P6 P8 P10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | US$ 1550 |
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 10000PCS |
|
Detail Information |
Product Description
Model Number:
P1.875/P2/P2.5/P3/P3.75/P3.91/P4/P4.615/P4.81/P5/P5.2/P5.92/P6/P6.944/P7.62/P8.925/P10/P10.41/P12.5
Die Casting Aluminum Rental Cabinet dimension:
480mm x 480mm
1.Ultra-thin & ultra-light
2.Die casted AL cabinets, high precision with seamless splicing
3.Standard cabinet size: 500x500mm, convenient for area calculation
4.Highly effective & quick for transportation and screen assembling
5.SMD black light, wider viewing angle, high-contrast(5000:1),soft image
6.Special buckles structural connection between the cabinets,don’t need other tools
7.Cabinets are in common use for standard modules,shorten production cycl
1. CNC + Die Casting process cabinets
The flatness of led panel surface is greatly improved by its CNC+Die Casting molding process (precision up to 0.05mm), thus it ensures the full screen’s seamless and precise installation.
2. Super Slim
The thickness is 60mm. This saves your installation space and packing size, it ensures the greatly fast movement and installation.
3. Light Weight
The weight of full panel is only 10KG, can be easily hanging up by one person, with only two person can finish 12sqm led screen installation in 30minutes, it saves your time and labor cost.
4. Convenient and Fast Installation
We adapted Plug and play designing for this series, the power and signal connector is quite easy and fast for in&out operation; and the signal connection can be in horizontal and vertical ways, it satisfied the rental application in any cases.
Ultra-thinLightweightIndoorDie-castingAluminum Rental LED Video Screen series:
| Pitch/mm | P4 | P4.8 | p5.33 | p6 |
| Module size/mm | 256x256 | 250x250 | 288x288 | 192x192 |
| Density of pixel/(dots/m2) | 62500 | 43402 | 35,200 | 27,777 |
| Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Led encapsulation | SMD0606 | SMD3528 | SMD3528 | SMD3528 |
| Resolution of module | 72X72 | 60X60 | 54X54 | 48X48 |
| Optimum viewing distance | 3-15m | 4-16m | 5-16m | 7.5-20m |
| View angle | 140H,120V | 140H,120V | 140H,120V | 140H,120V |
| Max power consumption/W/M2 | 1,100 | 1,100 | 1,000 | 1,000 |
| Size of cabinet/mm | 512x512 | 500x500 | 576x576 | 576x576 |
| Resolution of cabinet | 144X144 | 120X120 | 108X108 | 96x96 |
| Weight of cabinet/kg | 8 | 8 | 8 | 8 |
| Driving method | 1/9 scan constant current | 1/15 scan constant current | 1/9 scan constant current | 1/8 scan constant current |
| Refresh rate Hz/S | ≥1500 | ≥1500 | ≥1500 | ≥1500 |
| Luminance of white balance | ≥1500 nits | ≥1500 nits | ≥1500 nits | ≥1500 nits |
| Operation of Environmental Temperature/deg | below 30 to above 50 | |||
| Working vlotage | 110-220 VAC/+/- 10% | |||
| Grey scale/color | displaying colors≥16.7M(synchronized) | |||
| Brightness adjustment | 256 levels of each color(manually),100 levels of each color(automatically) | |||
| Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc | |||
| Control system | linsn(sending card,receiving cards and Hubs) | |||
| Average of non-failure life | >50,00h | |||
| Life span | >100,000h | |||
| Defect dot rate | <0.0001 | |||

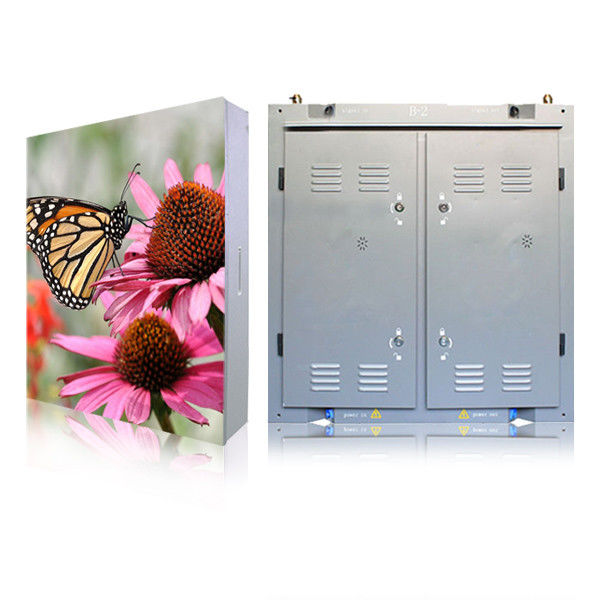

Super Slim Fixed Installation Outdoor LED Advertising Display Billboard series:
| Specification of Outdoor Full Color Video LED display Screen | |||||||||
| Classification | PH10 | PH12 | PH14 | PH16 | PH18 | PH20 | PH22 | PH25 | PH31.25 |
| Pixel pitch(mm) | 10(physical) | 12(physical) | 14(physical) | 16(physical) | 18(physical) | 20(physical) | 22(physical) | 25(physical) | 31.25 |
| 6(virtual) | 8(virtual) | 10(virtual) | 12.5(virtual) | ||||||
| Pixel configuration | 1R1G1B | 2R1G1B | 2R1G1B | 2R1G1B | 2R1G1B | 2R1G1B | 2R1G1B | 2R1G1B | 4R2G2B |
| LED package | DIP346 | DIP346 | DIP546 | DIP546 | DIP546 | DIP546 | DIP546 | DIP546 | DIP546 |
| Pixel denstiy/ sqm | 10000dots | 6844dots | 5102dots | 3906dots | 3086 dots | 2500dots | 2066dots | 1600dots | 1024dots |
| 27777 dots | 15625 dots | 10000dots | 6400dots | ||||||
| Module size(mm*mm) | 320*160 | 192*192 | 224*112 | 256*128 | 288*144 | 320*160 | 352*176 | 200*200 | 125*250 |
| Module pixel( dots) | 32*16 | 16*16 | 16*8 | 16*8 | 16*8 | 16*8 | 16*8 | 8*8 | 4*8 |
| Standard size of cabinet(mm*mm) | 960*960 | 1152*768 | 896*896 | 1024*768 | 1152*864 | 1280*960 | 1056*1056 | 1000*1000 | 1000*1000 |
| Cabinet pixel( dots) | 96*96 | 96*64 | 64*64 | 64*48 | 64*48 | 64*48 | 48*48 | 40*40 | 32*32 |
| Best view angle | 160° | 160° | 160° | 160° | 160° | 160° | 160° | 160° | 110° |
| Maximum power comsuption(W/sqm) | 750 | 700 | 600 | 1000 | 950 | 900 | 700 | 600 | 600 |
| Brightness cd/sqm | ≥8500 | ≥8000 | ≥8000 | ≥ 7500 | ≥ 6500 | ≥ 6000 | ≥ 5500 | ≥5000 | ≥ 5500 |
| Driving method | 1/4 constant driving | 1/2 contant driving | Constant static | ||||||
| Display color | 256*256*256 | ||||||||
| Refresh frequency | 3500HZ | ||||||||
| Frame frequency | 60HZ | ||||||||
| Protection Level | Front:IP65; back:IP65 | ||||||||
| Working Voltage | AC220/110±10% | ||||||||
| Working environment temperature | -40º degree - +50º degree | ||||||||
| Life span | >100000hours | ||||||||
